U10-5

Compact Excavators

For Competitive Pricing
Refer to Dealer

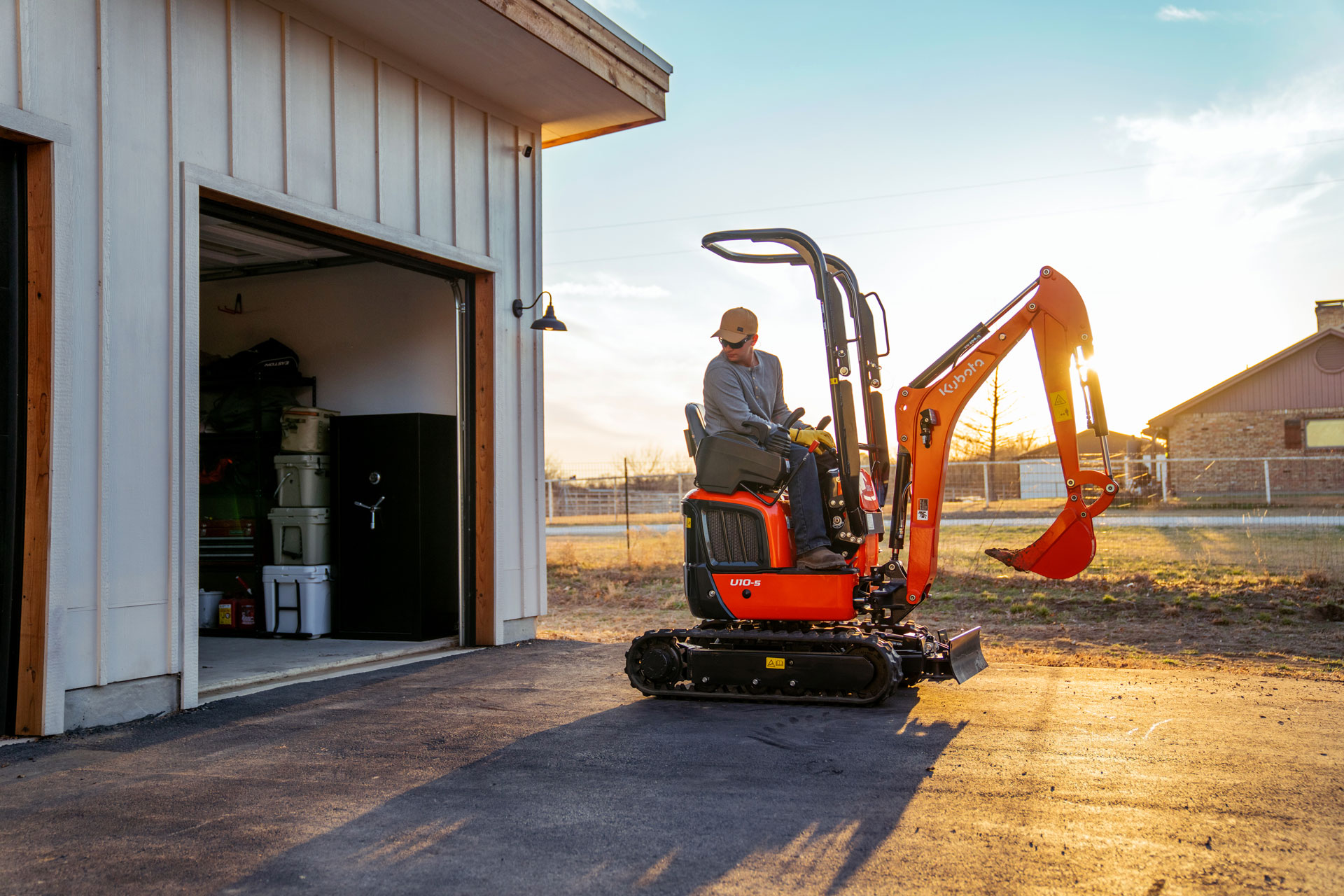

The Kubota U10-5 highlights a 10’ digging height and 5’ 11” digging depth, an incredible offering inside its ultra-compact frame. Kubota’s reputation for durability and operator comfort shine through in the U10-5 and you’ll also have access to an adjustable track range and standard two-speed for increased control. Read Disclaimer

Features & Details

U10

New Features

  • Side Lever, Hydraulic Pilot Joysticks for better and more relaxed operator working posture and forward visibility
  • Front Facing, Foldable ROPS is standard allowing for ease of travel during transport and under doorways to work indoors
  • LED Light mounted onto the boom is standard providing plenty of illumination for nighttime tasks
  • New peel resistant seat ready to take on the toughest conditions
  • New retractable seat belt
Variable Width Undercariage

Variable Width Undercarriage*

To enable passage through narrow spaces such as doorways and gates, the adjustable width track frame can be reduced by simply operating a single lever. Plus, changing the blade width is as easy as removing one pin by hand.

*Available on K008-3, K008-5, U10-5, KX018-4

KX018-4_Cat No.8794-01-EU_Page_3_Image_0004

Clean Running Kubota Tier 4 Engine

Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.

auto downshift

Two Speed Travel

All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.

TPSS__

Changeable Control Pattern

Convenient Two-pattern Selection System (TPSS) allows you to change between ISO and SAE operating patterns with a quick flip of the TPSS switch – without tools or leaving your seat.


SPECS & COMPARE: Kubota Models

U10-5

10.3 hp. Outstanding power, maneuverability and precision inside an ultra-compact body.

SEE DEALERSHIP FOR PRICE
  • Engine Model
    Kubota D722-E4
  • Horsepower (gross)
    10.3
  • Displacement (cu. in.)
    43.8 (719)
  • Overall Length
    9ft 9in (2980)
  • Overall Height
    7ft 5in (2260)
  • Overall Width
    3ft 3in (990) / 2ft 6in (750)
  • Min. Ground Clearance
    5.5in (140)
  • Crawler Length
    4ft 5in (1340)
  • Pump Capacity (GPM)
    2.8 (10.5) x 2
  • Auxiliary Hydraulics Flow Rate (GPM)
    5.5 (21.0)
  • Bucket Breakout Force (lbs.)
    2337 (1060)
  • Arm Breakout Force (lbs.)
    1214 (550.6)
  • Traveling Speed: High (mph)
    2.5 (4.0)
  • Traveling Speed: Low (mph)
    1.2 (2.0)
  • Ground Contact Pressure (psi)
    4.2 (0.30)
  • Blade Width
    3ft 3in / 2ft 6in (990 / 750)
  • Blade Height
    7.9in (200)
  • Hydraulic Oil Reservoir / System
    3.3 / 4.5 (12.6 / 17.1)
  • Fuel Reservoir
    3.2 (12.0)
  • Operating Weight lbs. (kg)
    2646 (1200)
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.

Add Ons


EA20 Series Excavator Augers
View 360 Video

EA20 Series Excavator Augers

Kubota by Land Pride: The EA20 Excavator Augers are ideal for dirt or building contractors, fence contractors, and in rental fleets. Easily reach hard to access areas with an excavator and bore holes for fences, footings, and more. Only available through Kubota Dealers. (EA35 Photo shown as reference.)
