U27-4

Compact Excavators

For Competitive Pricing
Refer to Dealer
0 0 60 1500 Offer Badge

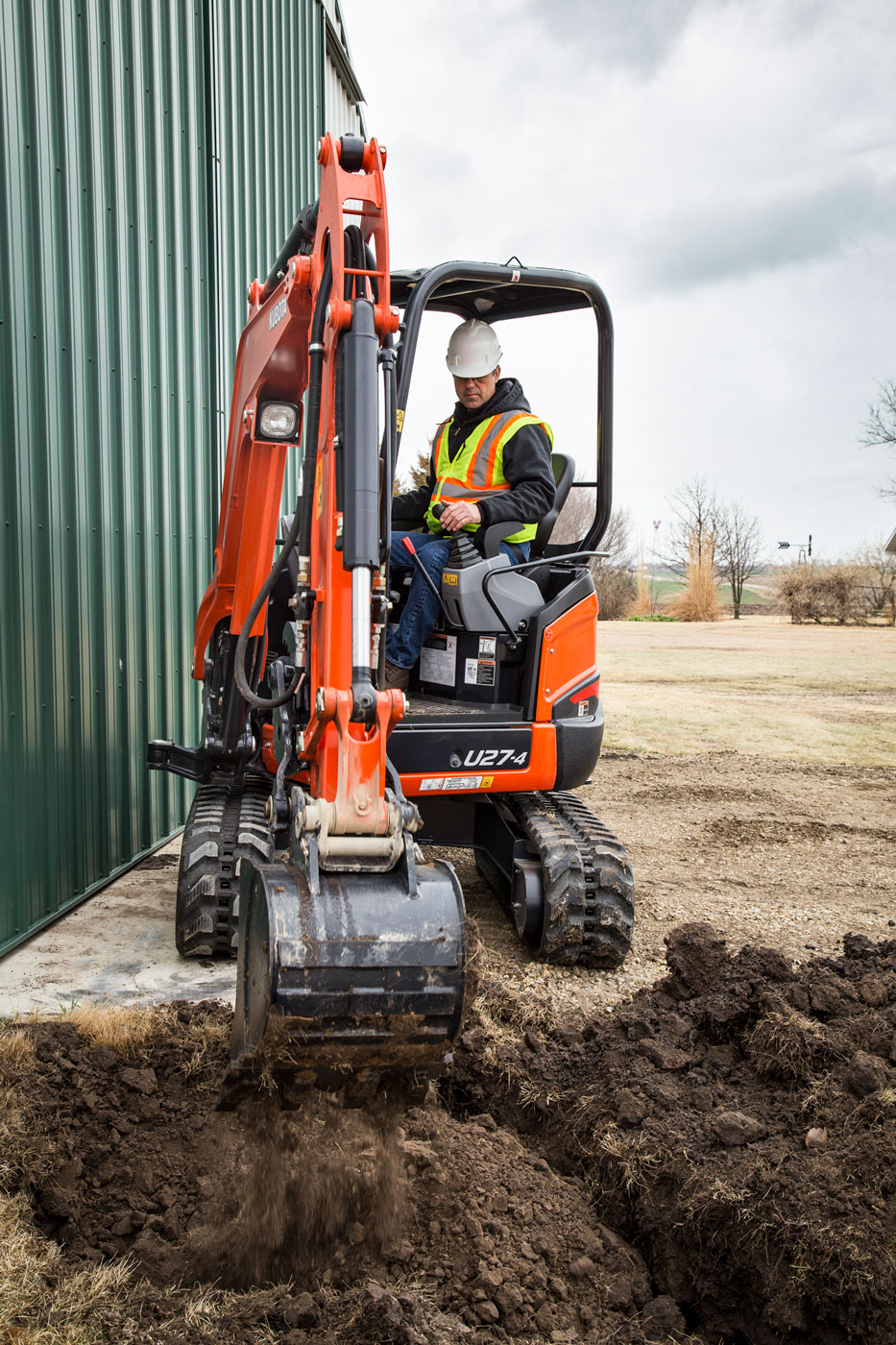

Versatility comes naturally to the Kubota U27-4, designed to assist you in a wide variety of tasks on the jobsite. With front pin bushing and a centralized swivel bearing lubrication, you’ll operate the excavator’s arm with ease and use its advanced hydraulics. Ergonomic placement of controls keeps things simple for the operator and with 20.8 horsepower available, you’re going to be taking on plenty of jobs behind the controls. Read Disclaimer

Features & Details

KX018-4_Cat No.8794-01-EU_Page_3_Image_0004

Clean Running Kubota Tier 4 Engine

Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.

auto downshift

Two Speed Travel

All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.

TPSS__

Changeable Control Pattern

Convenient Two-pattern Selection System (TPSS) allows you to change between ISO and SAE operating patterns with a quick flip of the TPSS switch – without tools or leaving your seat.

h_MG_4510-KX033

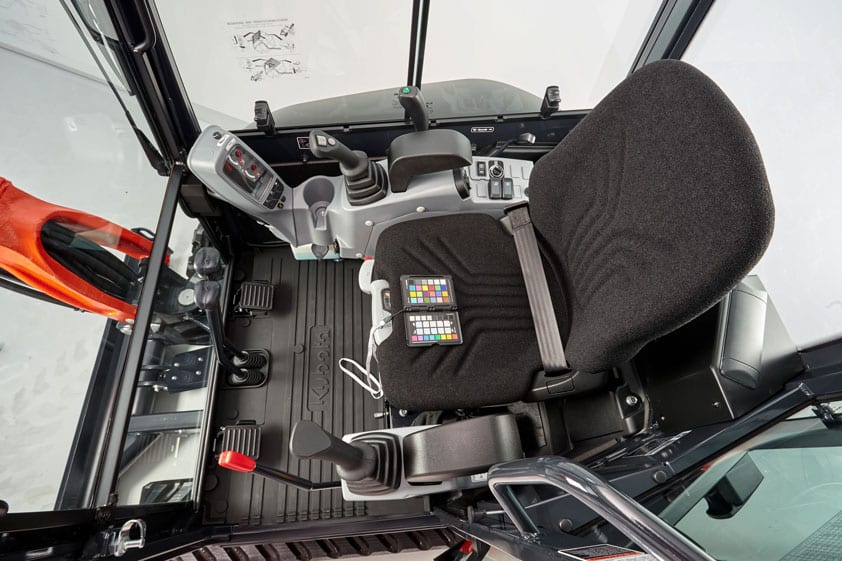

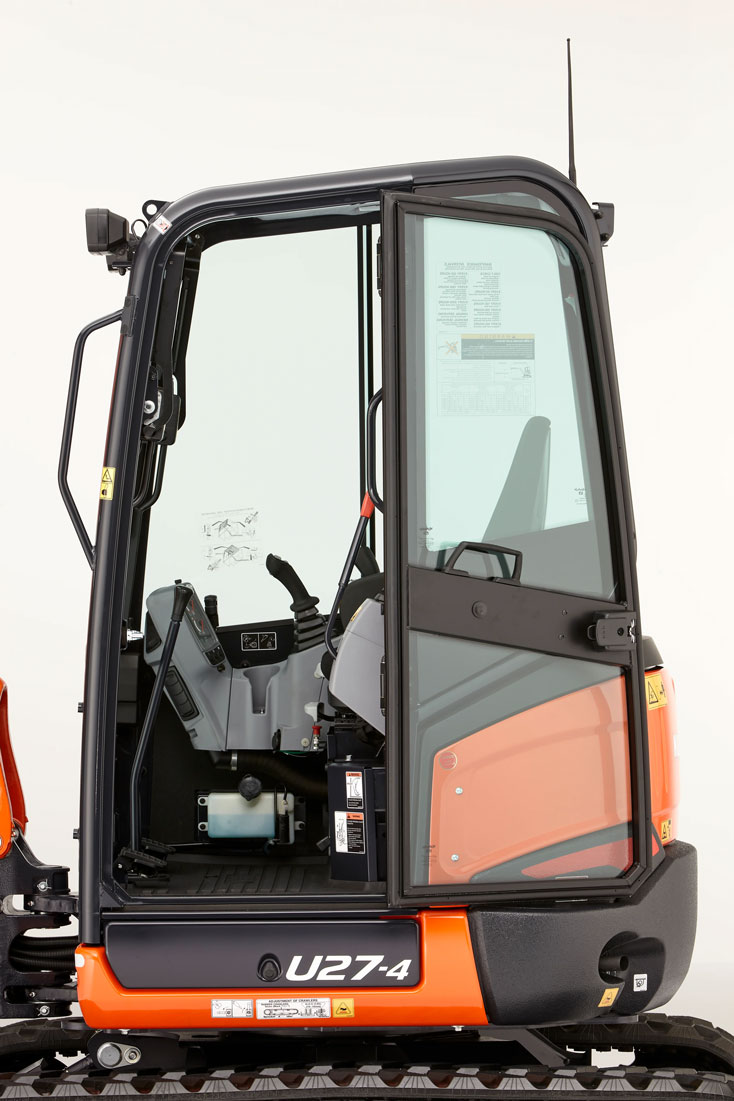

Comfort & Convenience

  • A spacious operator station designed for greater comfort, with a fully flat floor for more legroom
  • Digital panel with easy access, simple settings and easy-to-read indicators and alerts
  • Easy cab entry and exit
  • Easy-open front slide window
  • Wrist rest
  • Cup holder
  • Optional cab
IMG_5823

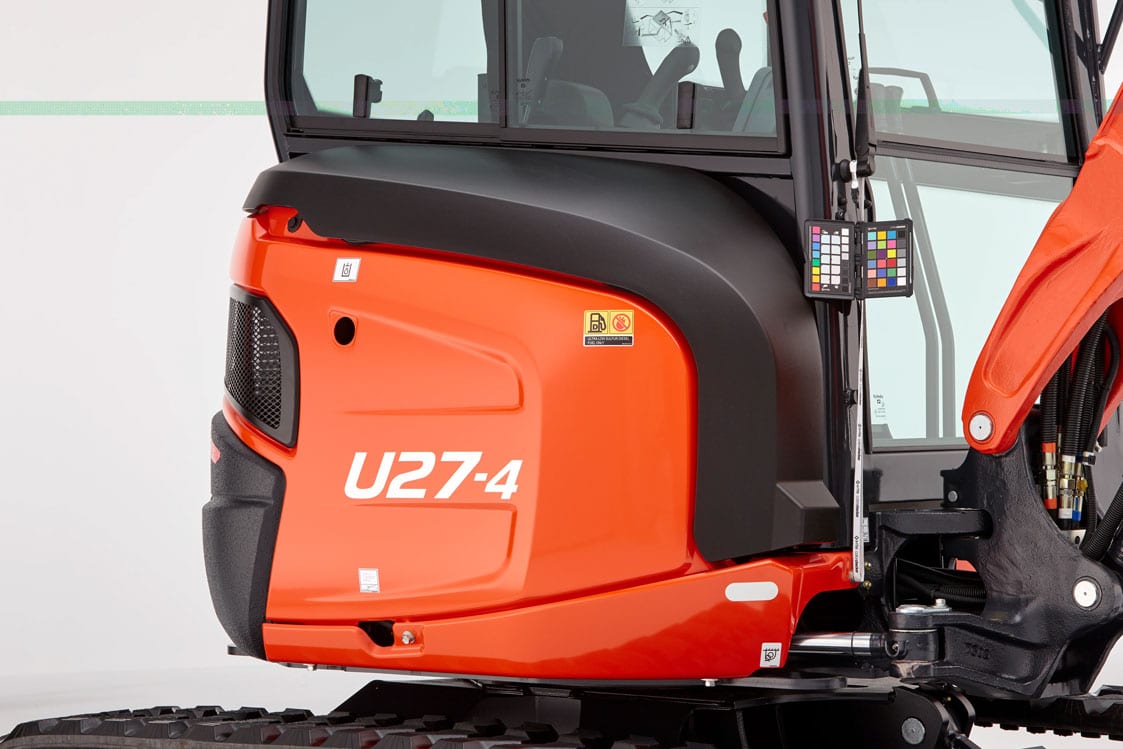

Serviceability

  • Front pin bushings to help maximize durability
  • Centralized swivel bearing lubrication
  • Protected cylinder hoses
  • Steel hood panels
  • One-sided engine maintenance
  • Wide hood openings for easy access to engine and other vital components
Right-Joystick-

Auxiliary

  • Proportional flow control of auxiliary circuit (AUX1) and maximum oil flow setting – you can operate a larger variety of auxiliary attachments than ever before
  • Proportional AUX flow switch – a convenient bi-directional switch enables easy operation of hydraulic thumbs and other hydraulic attachments such as augers and breakers

SPECS & COMPARE: Kubota Models

U27-4

20.8 HP. Comfortable, nimble and ready to help unlock your full potential.

SEE DEALERSHIP FOR PRICE
  • Engine Model
    Kubota D1105-BH
  • Horsepower (gross)
    20.8
  • Displacement (cu. in.)
    68.5
  • Overall Length
    13'6"
  • Overall Height
    7'11"
  • Overall Width
    4'11"
  • Min. Ground Clearance
    12.1"
  • Crawler Length
    6'6.3" (1990)
  • Pump Capacity (GPM)
    20.3
  • Auxiliary Hydraulics Flow Rate (GPM)
    12.7
  • Bucket Breakout Force (lbs.)
    7014
  • Arm Breakout Force (lbs.)
    2777 (1990)
  • Traveling Speed: High (mph)
    1.6 2.7
  • Traveling Speed: Low (mph)
    1.6
  • Ground Contact Pressure (psi)
    3.321
  • Blade Width
    59.1"
  • Blade Height
    11.8"
  • Hydraulic Oil Reservoir / System
    5.8 / 9.7
  • Fuel Reservoir
    8.7
  • Operating Weight lbs. (kg)
    5625 (2550)
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.
