U35-4

Compact Excavators

For Competitive Pricing
Refer to Dealer

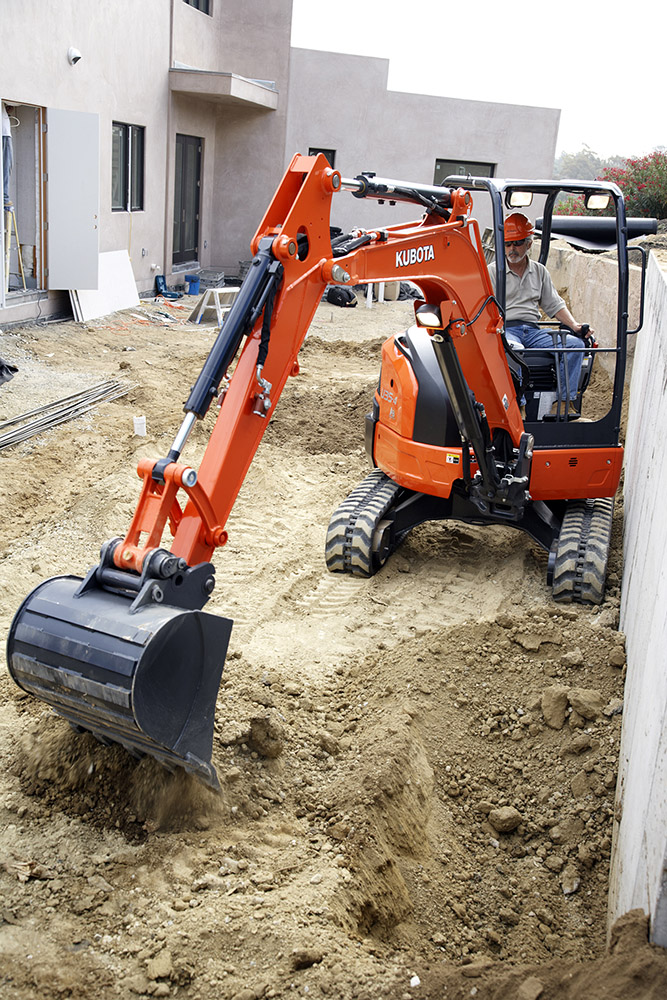

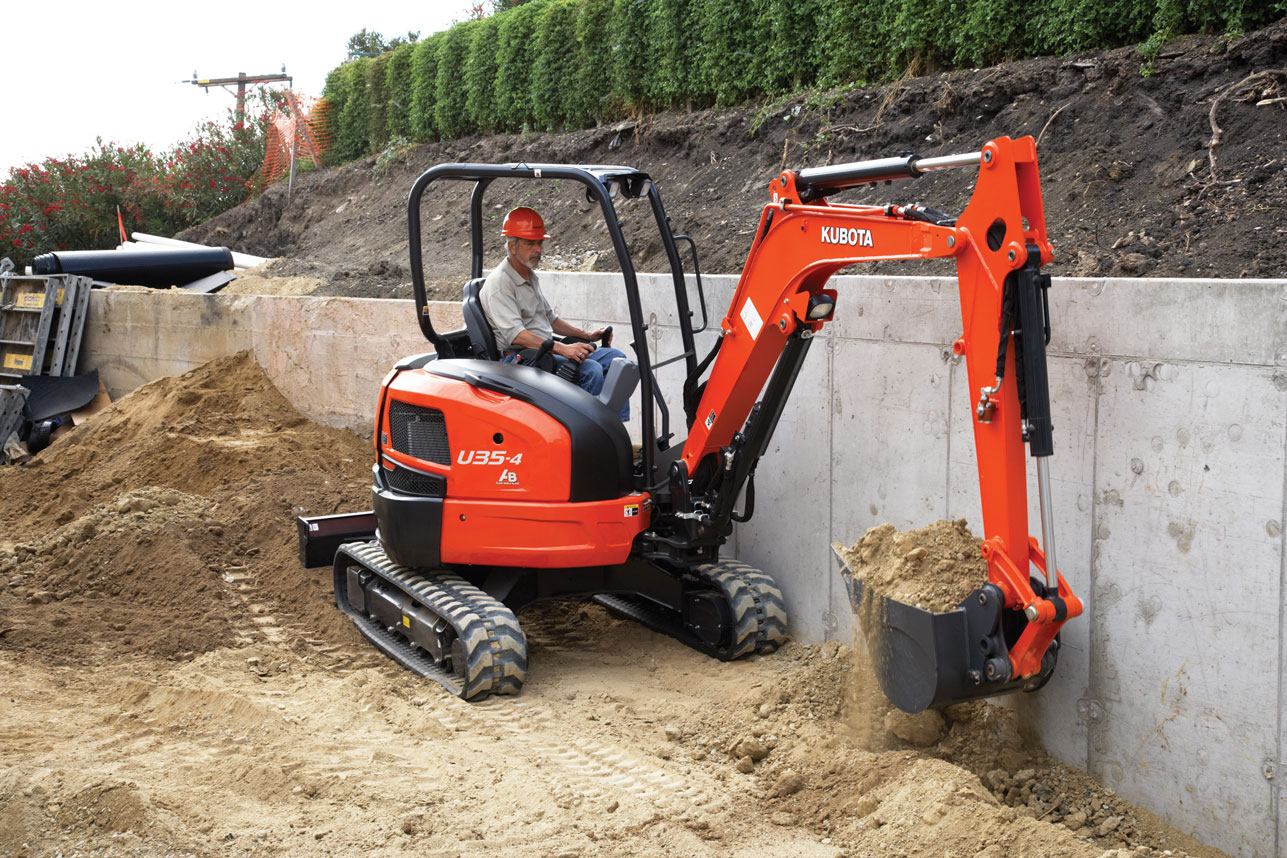

With a wide range of attachments and 24.8 horsepower at its disposal, the Kubota U35-4 Compact Excavator is here to help you reach for the stars. Not only is the compact excavator built with extreme durability, the operator’s station is designed for the ultimate operator experience as well. Nimble enough for confined spaces and sturdy enough for variable terrain, your U35-4 is ready to help you rule the jobsite and unlock your fullest potential. Read Disclaimer

Features & Details

Optional Hydraulic Angle Blade

Save time and work more efficiently. With a simple movement of the new thumb operated rocker switch on the dozer lever, the hydraulic angle blade can be angled to the right or left to push soil to the side as the machine moves forward, eliminating the need for repetitive repositioning at right angles when backfilling trenches.

1Available on U35-4, U55-5

Clean Running Kubota Tier 4 Engine

Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.

Two Speed Travel

All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.

Changeable Control Pattern

Convenient Two-pattern Selection System (TPSS) allows you to change between ISO and SAE operating patterns with a quick flip of the TPSS switch – without tools or leaving your seat.

Comfort & Convenience

  • A spacious operator station designed for greater comfort, with a fully flat floor for more legroom
  • Digital panel with easy access, simple settings and easy-to-read indicators and alerts
  • Easy cab entry and exit
  • Easy-open front slide window
  • Wrist rest
  • Cup holder
  • Optional cab

Serviceability

  • Front pin bushings to help maximize durability
  • Centralized swivel bearing lubrication
  • Protected cylinder hoses
  • Steel hood panels
  • One-sided engine maintenance
  • Wide hood openings for easy access to engine and other vital components

Auxiliary

  • Proportional flow control of auxiliary circuit (AUX1) and maximum oil flow setting – you can operate a larger variety of auxiliary attachments than ever before
  • Proportional AUX flow switch – a convenient bi-directional switch enables easy operation of hydraulic thumbs and other hydraulic attachments such as augers and breakers

SPECS & COMPARE: Kubota Models

U35-4

24.8 HP. Built to outperform and outlast the competition.

SEE DEALERSHIP FOR PRICE
  • Engine Model
    Kubota D1703M-DI-E4
  • Horsepower (gross)
    24.8
  • Displacement (cu. in.)
    100.5
  • Overall Length
    15 ft 7 in (4749)
  • Overall Height
    8 ft 1.2 in (2470)
  • Overall Width
    5 ft 6.9 in (1700)
  • Min. Ground Clearance
    11.34 (288)
  • Crawler Length
    6 ft 10 in (2084)
  • Pump Capacity (GPM)
    10.5 (39.6.) x 2 / 5.5 (20.9) x 1
  • Auxiliary Hydraulics Flow Rate (GPM)
    15.8 (60)
  • Bucket Breakout Force (lbs.)
    7924 (3594)
  • Arm Breakout Force (lbs.)
    4451 (2019)
  • Traveling Speed: High (mph)
    1.9 (3.0)
  • Traveling Speed: Low (mph)
    2.9 (4.6)
  • Ground Contact Pressure (psi)
    Rubber: 4.89 (0.34) / 5.08 (0.36) Steel: 5.00 (0.35) / 5.19 (0.36), Angle blade rubber: 5.10 (0.36) / 5.19 (0.36) Angle blade steel: 5.21 (0.37) / 5.40 (0.38)
  • Blade Width
    5 ft 6.9 in (1700)
  • Blade Height
    1 ft 1.5 in (343), Angle Blade: 1 ft 3.2 in (385)
  • Hydraulic Oil Reservoir / System
    11.8 (44.6) / 16.1 (61)
  • Fuel Reservoir
    12.4 (46.9)
  • Operating Weight lbs. (kg)
    Rubber: 8129 (3687) / 8451 (3833), Steel: 8325 (3776) / 8647 (3922), Angle blade rubber: 8478 (3845) / 8800 (3991), Angle blade steel: 8674 (3934) / 8996 (4080)
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.

Add Ons


ea35_main

Excavator Auger

    Excavator Augers dig holes for footings or fences using the excavator's flexibility to access hard to reach areas or dig to greater depths than a CTL/skid steer is capable of.
