SCL1000

Stand-On Compact Loader

For Competitive Pricing
Refer to Dealer

The SCL1000, compact in size, packed with performance and features. The SCL1000 features a wide 9.8-inch track that comes standard on the narrow, 36-inch machine.  Boasting a powerful 24.8 horsepower turbo-charged Kubota diesel engine, this machine is able to handle all of those tough tasks and materials.  Precision engineered with cushioned loader boom cylinders and an adjustable platform suspension system, this machine is determined to increase operator comfort for maximum productivity.


Features & Details

POWER & PERFORMANCE

  • 24.8 HP Turbo-charged Kubota engine provides quiet operation, high altitude performance and requires no DPF.
  • Hydraulic pump directly connected to the engine reduces maintenance.
  • Vertical lift loader arms reach higher and further than the competition with a hinge pin height of 84.7" and a reach of 26" (at 45° dump angle).
  • 1000 lbs. ROC combined with 15 gpm auxiliary hydraulic flow make for a powerful and productive compact utility loader.
  • Works in zero clearance yards with low impact wide track design (4.0 psi) minimizing damage to grass or landscaping.
  • 4.9 mph Best in class travel speed

COMFORT & CONVENIENCE

  • Cushioned loader boom cylinders and adjustable platform suspension increase operator comfort for maximum productivity.
  • 4.3" Color LCD monitor
  • Keyless start with passcode protection
  • 12 Volt charging port

OPERATOR CONTROLS

  • The patent pending T-drive handle provides intuitive and ergonomic steering.
  • Hydraulic pilot-operated loader and drive control valves offer precise and responsive control of the machine.
  • Right hand joystick controls loader arm and bucket movement.
  • Auxiliary hydraulics are easily operated without removing your hand from the loader joystick.
  • Continuous flow in either direction is as simple as pushing a button.

DURABILITY

  • Auxiliary hydraulic lines are routed inside the loader arm for optimal protection. Case drain is standard. Auxiliary hydraulic couplers are pressure release type.
  • Attachment hose guide is standard.
  • Welded track frame has angled top for debris shedding and the dual flange front idler provides better stability and weight distribution.

SERVICE

  • Easy to access centralized filters and everyday maintenance items.
  • Dash indicator light alerts when the air filter needs cleaned, and service  information is readily available at the touch of a button.
  • Maintenance time is reduced with permanently sealed and lubricated track rollers, and the grease type track tension system.

COUPLER

  • Heavy-duty cast CII Coupler and protective cover for bucket cylinder fittings.
  • CII coupler is standard.
  • Optional welded 2-lever style coupler.
  • Solid state controller minimizes fuses reducing electrical components, while improving reliability.
  • The hood is made out of impact resistant material for greater protection.

SAFETY

  • Engine RPM has to be at idle to unlock the hydraulics for machine operation.
  • Walk behind mode for loading onto a trailer allows operation of the travel and loader joysticks only.
  • When operator leaves the platform, the parking brake is automatically engaged.
  • Front LED work light has 30 second courtesy timer to stay on after powering off.

SPECS & COMPARE: Kubota Models

SCL1000

24.8HP. Break through even the toughest obstacles.

SEE DEALERSHIP FOR PRICE
  • Horsepower (gross)
    24.8
  • Displacement (cu. in.)
    54.8cu.in
  • Engine Type
    Water cooled 4 cycle diesel engine with 3 cylinder, turbo, EPA Tier 4
  • Rated Speed
    2800rpm
  • Low Idling Speed
    1250rpm
  • Overall Length
    107.7in
  • Overall Height
    55.7in
  • Rated Operating Capacity (ROC)
    1000lbs @ 35%
  • Tipping Load (lbs.)
    2857lbs (1296 kg)
  • Auxiliary Hydraulic Pressure (psi)
    2800
  • Overall Width w/Std Bucket
    36in (91.44 cm)
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.

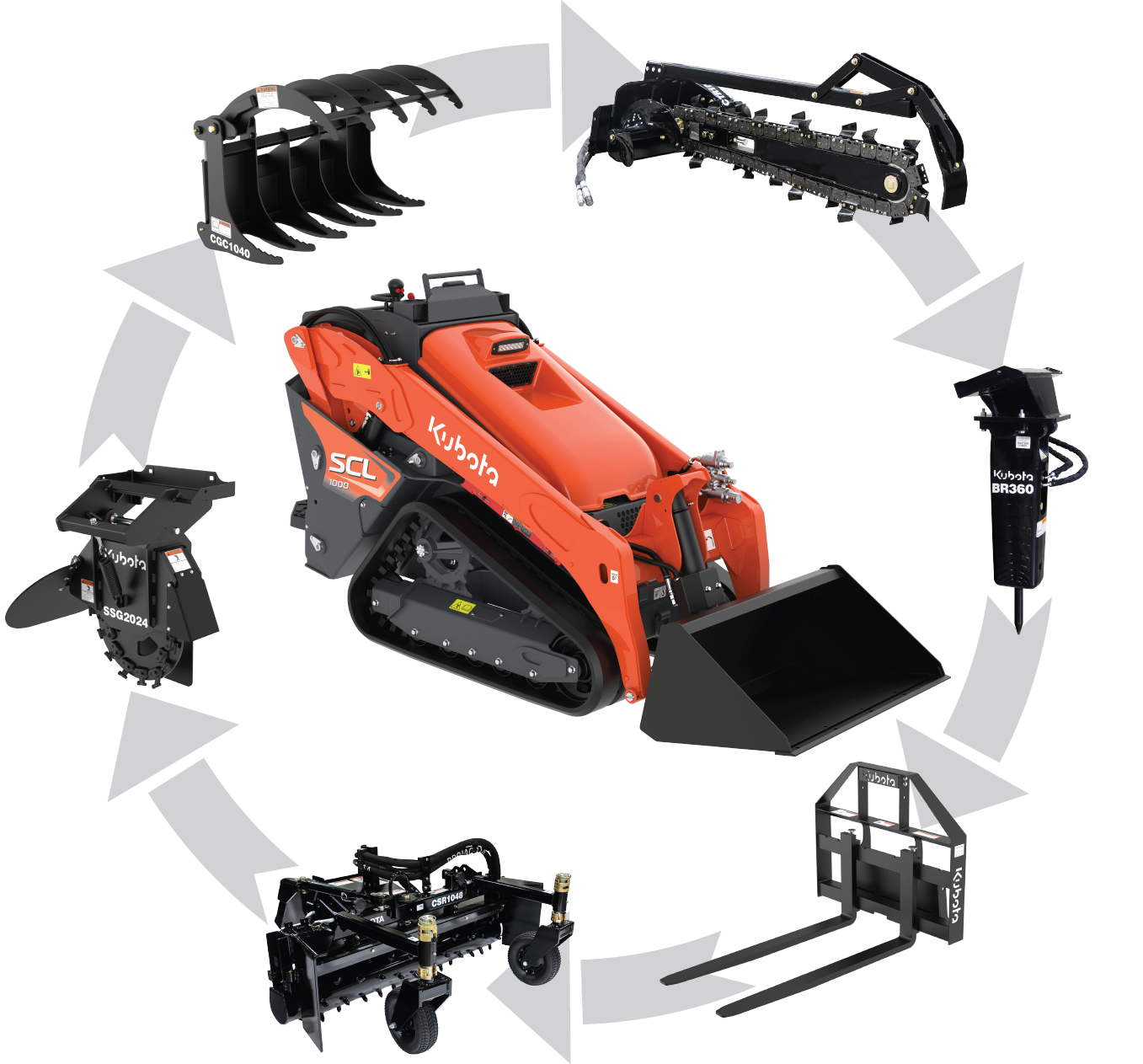

Add Ons


Compact Mount for BR Series Breakers
View 360 Video

Compact Mount for BR Series Breakers

Kubota by Land Pride: The Compact Mount for the BR360 and BR460 is performance matched to the Kubota SCL1000 for optimum efficiency. This unit is ideal for demolition of concrete and rock, and as a rental tool where optimum power and breaking efficiency is required.
