SVL110-3

Track Loaders

MSRP As Low As§
$119,860.00
MSRP for power unit with telematics and back-up camera. Price does not include additional accessories, or buckets and attachments.

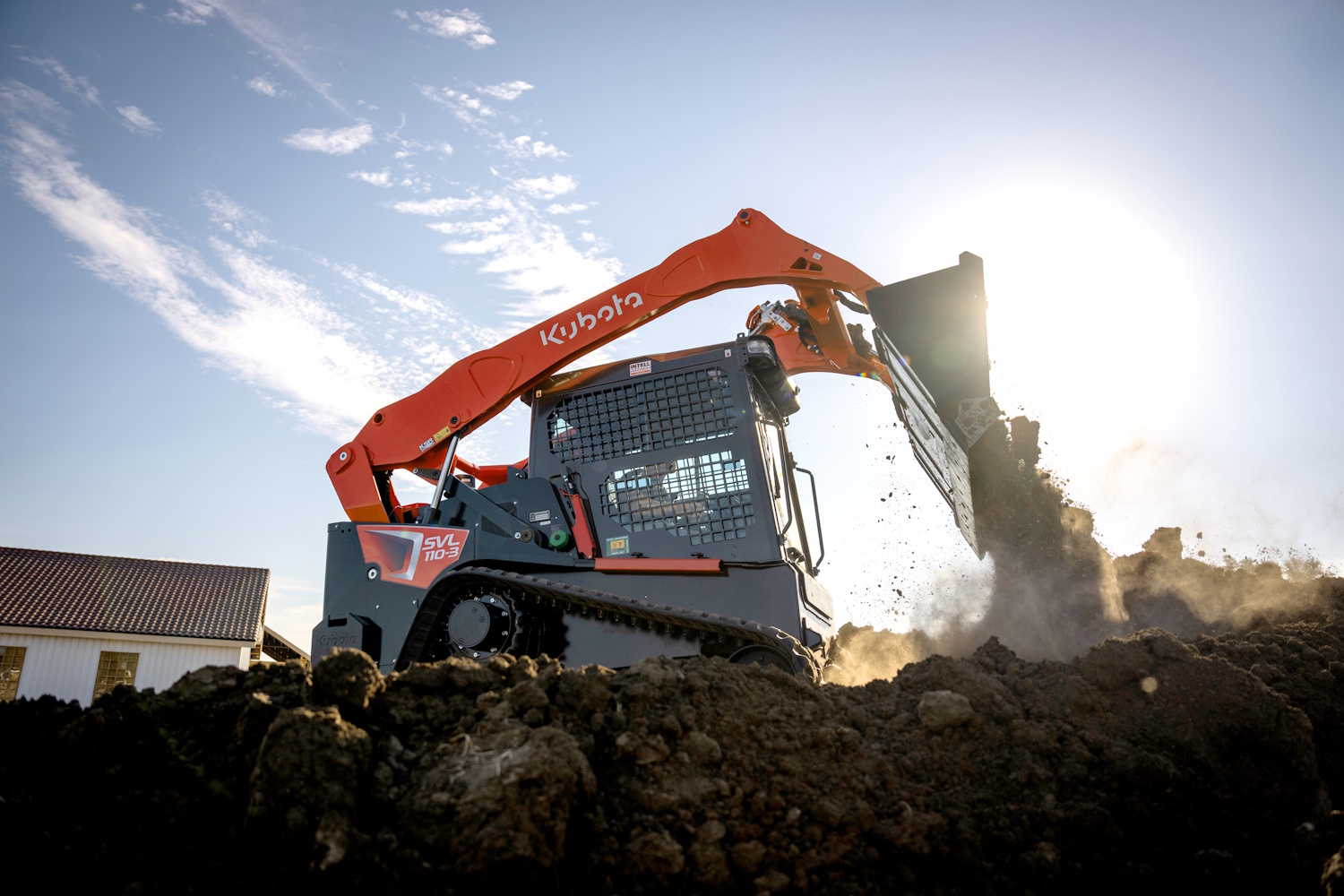

The SVL110-3 is Kubota’s newest track loader and is ready to tackle the toughest of tasks with ease. Stay comfortable all day long in the sealed one-piece cab with an air ride suspension high back seat. Adjust the machine controls through the 7” LCD screen and multifunction grips. The SVL110-3 is also packed with features like creep mode, auto downshift and an auxiliary performance system. Break new ground in the SVL110-3. #1 Selling Compact Track Loader in the USA.*

*Based on EDA/UCC Data from 01/01/2020 - 12/31/2024 for sales of new compact track loaders in the USA.

Read Disclaimer

Special Offers

TRACK LOADERS
Save Up to $6,200 or 0% A.P.R. For Up to 36 Months With 0% Down on SVL Series!**
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

Loaded With Technology

  • The 7 inch LCD monitor gives operators access to a wide range of functions and vital information. (excluding the SVL65-2 and SVL97-2)
  • Selectable one-way hydraulic self leveling helps keep the bucket or pallet forks in a horizontal position without the need to manually adjust the angle during lifting.
  • Kubota WorkSmart Telematics provides machine vitals, machine location updates and allows owner to enable features like geofences and inhibit restart.
  • Standard Auto Downshift (excluding SVL65-2)

Wider Cab Entrance

With a 36" side-screen to side-screen width, the SVL wide cab allows operators to comfortably pivot when looking at their rear. In addition, a high back seat provides additional operator comfort.

Sealed One Piece Cab

Kubota SVL’s are equipped with Kubota's sealed one-piece cab. This cab design helps prevent dirt, dust, rain and debris from entering the operator station when the door is closed, while also reducing noise levels. (excluding the SVL65-2s & SVL97-2)

Standard Low Effort Hydraulic Controls

Work next to home structures and curbs with confidence. Different from Electro-Hydraulic Controls, these hydraulic controls provide maximum feel and precision - with no adjustments or settings necessary. Start moving when you think you're going to start, and stop moving when you think you're going to stop when operating with Kubota's hydraulic controls.

Loader Arm Design

A rugged loader arm design with long reach and high bucket hinge pin height, this proven loader arm design with vertical geometry can push and dig as well as a radial machine. It's reinforced in all the right areas, including critical connections to the coupler and rear cross bar. It is designed to be a work horse.

Loaded With Technology

  • The 7 inch LCD monitor gives operators access to a wide range of functions and vital information. (excluding the SVL65-2 and SVL97-2)
  • Selectable one-way hydraulic self leveling helps keep the bucket or pallet forks in a horizontal position without the need to manually adjust the angle during lifting.
  • Kubota WorkSmart Telematics provides machine vitals, machine location updates and allows owner to enable features like geofences and inhibit restart.
  • Standard Auto Downshift (excluding SVL65-2)

Wider Cab Entrance

With a 36" side-screen to side-screen width, the SVL wide cab allows operators to comfortably pivot when looking at their rear. In addition, a high back seat provides additional operator comfort.

Sealed One Piece Cab

Kubota SVL’s are equipped with Kubota's sealed one-piece cab. This cab design helps prevent dirt, dust, rain and debris from entering the operator station when the door is closed, while also reducing noise levels. (excluding the SVL65-2s & SVL97-2)

Standard Low Effort Hydraulic Controls

Work next to home structures and curbs with confidence. Different from Electro-Hydraulic Controls, these hydraulic controls provide maximum feel and precision - with no adjustments or settings necessary. Start moving when you think you're going to start, and stop moving when you think you're going to stop when operating with Kubota's hydraulic controls.

Loader Arm Design

A rugged loader arm design with long reach and high bucket hinge pin height, this proven loader arm design with vertical geometry can push and dig as well as a radial machine. It's reinforced in all the right areas, including critical connections to the coupler and rear cross bar. It is designed to be a work horse.


Specs & Compare

Compare Kubota Models
SVL110-3
112.7 HP
MSRP AS LOW AS§
$119,860.00
  • Horsepower (gross)
    112.7
  • Displacement cu. in. (cc)
    230 (3769)
  • Overall Length, in (mm)
    123.7 (3141)
  • Overall Height, in (mm)
    83.1 (2112)
  • Overall Width, in (mm)
    77.2 (1962)
  • Operating Weight, lbs (kg)
    12322 (5589)
  • Operator Station
    Closed cab
  • Rated Operating Capacity (ROC), lbs (kg)
    3700 (1678)
  • Tipping Load, lbs (kg)
    10571 (4795)
  • Bucket Breakout Force, lbf (kg)
    7650 (3469)
  • Lift Arm Breakout Force, lbf (kg)
    5288 (2398)
  • Lift Arm Path
    Vertical
  • Track Width (standard/wide), in. (mm)
    17.7 (450) / N/A
  • Ground Contact Pressure, psi (kPa)
    4.8
  • Track Rollers (per side)
    5
  • Track Ground Contact Length, in. (mm)
    65.6 (1667)
  • Traveling Speed: High, mph (kph)
    8.4 (13.4)
  • Traveling Speed: Low, mph (kph)
    5.5 (8.8)
  • Traction Force, lbf (kgf)
    13174.7 (5976)
  • Ground Clearance, in (mm)
    10.9 (278)
  • Auxiliary Hydraulic Pressure, psi (bar)
    3553 (250)
  • Auxiliary Hydraulics Flow Rate, GPM (LPM)
    45.0 (170.4)
  • Height to Hinge Pin, in (mm)
    128.5 (3264)
  • Ground Pressure, (psi)
    4.8
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.
