BV4580 Prem / PremNet

Balers

For Competitive Pricing
Refer to Dealer
1000 Offer Badge

Extended Warranty

Designed to produce high quality 5'x6' bales, these round balers are equipped to handle all types of crops and can take on the most demanding field conditions. Along with proven durable design, Kubota's 5'x6' balers offer a variety of hard-working standard features, including being Silage capable.

Features & Details

rotaryFeeding

Rotary Feeding System

All BV4580 balers are equipped with Kubota’s EasyFeed rotary feeding system. This technology incorporates integrated augers into the rotor feed design, allowing the crop to flow across the entire width of the bale chamber, resulting in increased capacity and bale density.

Focus III

Focus Control Terminal

The Focus III Terminal gives you full control of all functions on a high density color digital display from the tractor cab. The Focus III terminal monitors and controls all necessary functions including bale size, bale count, net wrap count and twine settings.

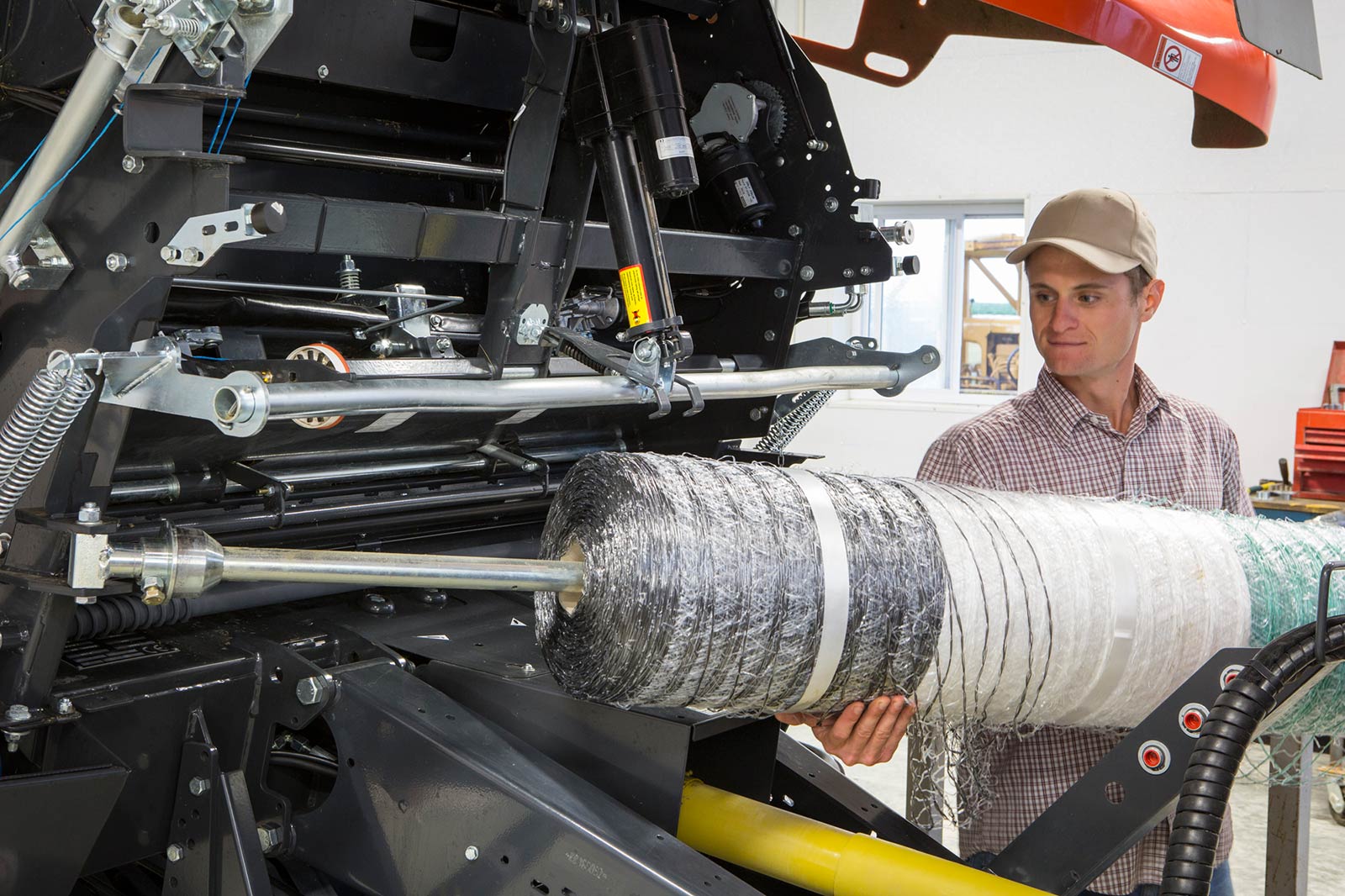

0614_BV4160_ChangeNetRoll_8477

PowerBind Net Wrap

BV4580 balers come with Kubota's patented PowerBind net wrap system. This completely redesigned technology has allowed Kubota to get away from the old feed rollers and eliminate many high wear items. The net is fed directly into the bale chambers by injection plates. This design keeps the net tight at all times, which provides accurate and extremely reliable net injection. In addition, the PowerBind net system is extremely simple with a very low loading height (no tools required).

drivingIndication

Three Way Bale Shape Indication

  • Three way bale indication shows bale shape (of each side and middle of the bale)
  • Driving indicators show driving direction for perfect bale formation in all windrows
0814_BV4160_Pickup_1618

High Capacity Pick-Up

These balers feature a 5 bar 86" heavy duty pickup. The low profile pickup is designed with closely spaced tines which provides for a very smooth flow of crop into the baler. This design provides unparalleled pickup capacity, from light windrows all the way up to heavy silage windrows, and can easily be seen from the tractor.

MRTProfileBelts

Durable MRT Profile Belts

Durable MRT profile belts with heavy duty MATO lacings.


SPECS & COMPARE: Kubota Models

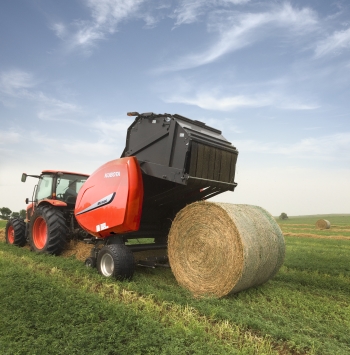

BV4580 Prem / PremNet

Designed to produce high quality 5'x6' bales.

SEE DEALERSHIP FOR PRICE
  • Length in.
    176"
  • Width in.
    116"
  • Height in.
    112"
  • Weight lbs. (kg)
    7275 / 7175
  • Diameter Min in.
    24"
  • Diameter Max in.
    71"
  • Bale Width in.
    62"
  • Bale Formation
    8 belts + 3 rollers
  • Types of Belts
    Mato Plate
  • Bale Ramp
    Standard
  • Working Width in.
    86"
  • Number of Bars
    5
  • Number of Tine Rows
    160
  • Tine Spacing in.
    2.36"
  • Windguard
    Roller wind guard
  • Pneumatic Gauge Wheel
    Standard
  • Flare to Flare Pickup
    86
  • Lift
    Hydraulic
  • Lift Protection
    Radial Clutch
  • Rotor Feeder
    Standard
  • Protection, Cam Clutch
    Standard
  • 1 Main Chain
    100
  • 1 1/4" Main Drive Chain
    Standard
  • Wide Angle PTO Shaft
    Standard
  • Shear Bolt Protection
    Standard
  • Cam Clutch Protection
    Standard
  • Binding
    Net/Twine
  • Monitor
    Focus
  • Twine
    Double arm / NA
  • ISOBUS
    Optional
  • Focus Terminal
    Standard
  • IsoMatch Tellus
    Optional
  • Hydraulic Outlets
    1SA + 1DA
  • Wheels and Axles | 14L-16.1SL
    Standard
  • Wheels and Axles | 16.5-16.1SL
    Optional
  • PTO rpm
    540
  • PTO Protection
    Slipclutch
  • Minimum PTO Horsepower Required HP/KW
    70
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
