BV5160

Balers

For Competitive Pricing
Refer to Dealer
1000 Offer Badge

Extended Warranty

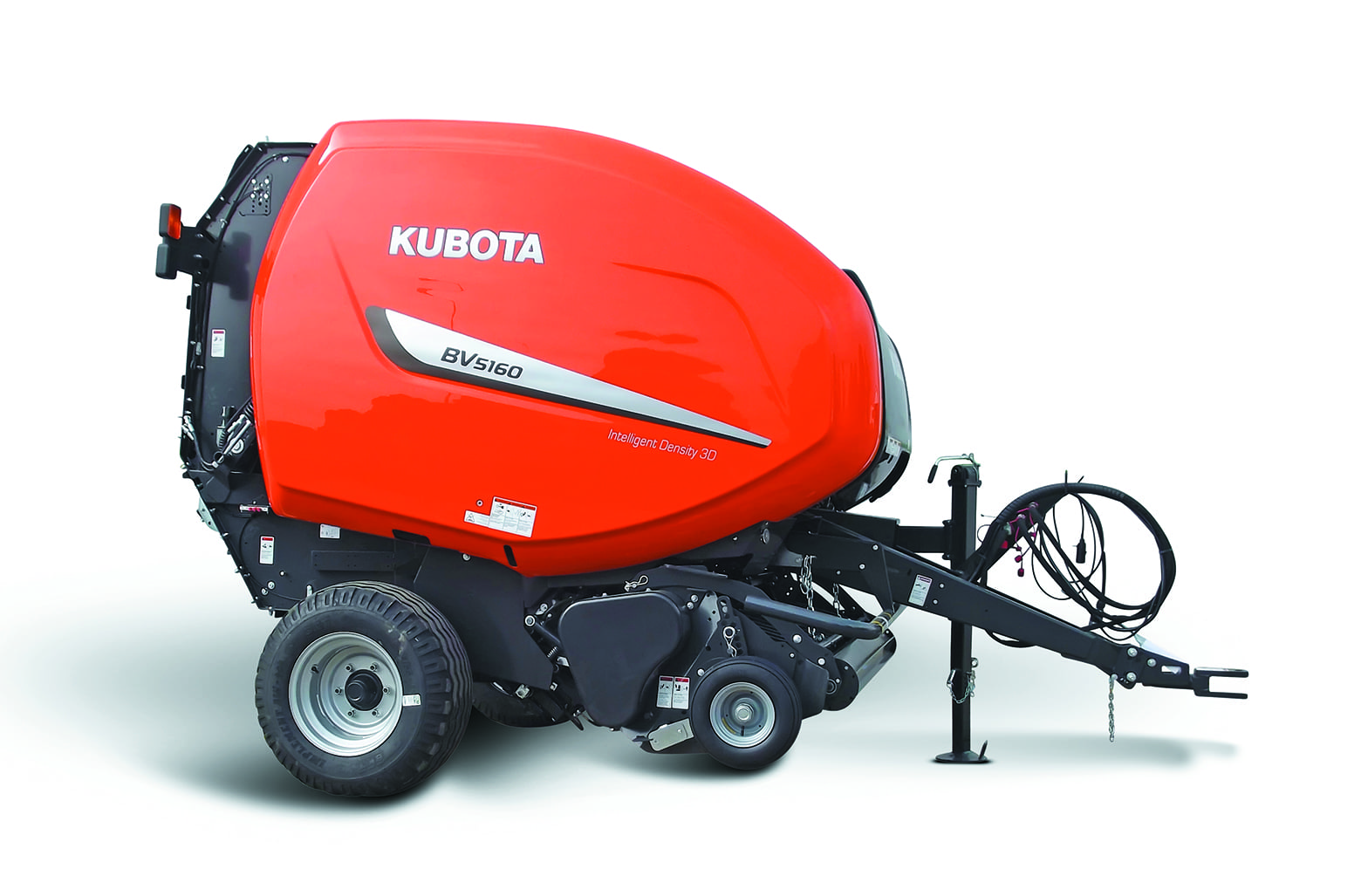

The Kubota BV5160 SC-14 series of balers are fully ISO ready and come standard with a drop floor and a 14 knife cutting system. These balers have been designed with nothing but silage in mind, so they produce high density bales in any type of crop and in any type of moisture condition. The unique bale chamber design ensures the least amount of air in your silage bales, which gives you the highest silage quality.

Features & Details

BV5160_SuperCut

SuperCut-14 Knife Rotor (SC-14 Model)

The SuperCut-14 version of BV5160 is the ideal solution for silage applications. The 14 knife chopping system provides a fast and efficient flow into the baler. With a chopping length of 2.75" it is the ideal solution for producing dense and airtight bales. Also, the bale is easier to break up during the feeding process.

IsoMatch_TellusGO_Kubota_ne

Control Terminal

The ISOGO Terminal is a universal ISO control terminal which can also be used with other Kubota implements. It gives you full control of all functions from the tractor cab and is shown on a large and very clear digital display. The ISOGO terminal monitors and controls all necessary functions with all relevant parameters/ information visible at a glance. The control box is also driving the binding automatically without any intervention from the operator.

0614_BV4160_Twine_Storage_8546

Twine Tying

Automatic twine tying with the fast acting double tube system means simultaneous binding of both edges of the bale, keeping binding time to a minimum. Over crossing of twines in the center of the bale provides no loose ends at the end of the binding cycle.

0614_BV4160_ChangeNetRoll_8477

PowerBind Net Wrap

These balers come with Kubota's patented PowerBind net wrap system. This technology has allowed Kubota to get away from the old feed rollers and eliminate many high wear items. The net is fed directly into the bale chambers by injection plates. This design keeps the net tight at all times, which provides accurate and extremely reliable net injection.  In addition, the PowerBind net system is extremely simple with a very low loading height (no tools required).

IntelligentDensity3D

Intelligent Density 3D

The Intelligent Density 3D bale chamber offers a combination of 3 rollers and 5 endless belts, giving it the ability to set the density of the bale in three different zones. The two aggressive front rollers that come in contact with the crop are constantly cleaned by scrapers and are designed to perform well in wet silage. They ensure instant and efficient bale start with immediate bale formation in all crop conditions.

BV5160_DropFloor

Drop Floor for Easy Unblocking

The Kubota drop floor enables the operator to clear blockages easily from the tractor cab without any crop loss. Drop the floor and free the rotor blockage, engage the PTO to feed the blockage through and close the floor to continue baling. This standard feature reduces downtime and helps increase productivity.

0814_BV5160_Pickup_1613

High Performance Pick-Up and Intake

On Kubota's BV5160, the load on the tine bars is minimized by using two intermediate supports and two separate cam tracks located at either end of the pick-up. Slip clutch protection comes standard. A roller wind guard is fitted on rotor intake models which pre-compresses the crop, further boosting intake performance. The working width on the BV5160 is 86".


SPECS & COMPARE: Kubota Models

BV5160

Balers with a prominent heritage.

SEE DEALERSHIP FOR PRICE
  • Length in.
    176"
  • Width in.
    99"
  • Height in.
    106"
  • Weight lbs. (kg)
    7165 / 6965
  • Diameter Min in.
    24"
  • Diameter Max in.
    65"
  • Bale Width in.
    47"
  • Bale Height in.
    60"
  • Bale Formation
    5 Belts + 3 Rollers
  • Endless Belts
    Standard
  • Bale Ramp
    Standard
  • Working Width in.
    86"
  • Number of Tine Rows
    5
  • Tine Spacing in.
    2.36"
  • Windguard
    Roller wind guard
  • Pneumatic Gauge Wheel
    Standard
  • Flare to Flare Pickup
    86"
  • Lift
    Hydraulic
  • Pickup Protection
    Radial Clutch
  • Fork Feeder
    N/A
  • Protection, Cam Clutch
    N/A
  • SuperCut-14 Knives
    Standard
  • Single Knife Protection
    Standard
  • Unblocking System
    Drop floor
  • 1 Main Chain
    1.25"
  • 1 1/4" Main Drive Chain
    Standard
  • Wide Angle PTO Shaft
    Standard
  • Shear Bolt Protection
    N/A
  • Cam Clutch Protection
    Standard
  • Binding
    Net / Twine
  • Monitor
    Focus
  • Twine
    Double Arm / NA
  • ISOBUS
    Standard
  • Focus Terminal
    Standard
  • IsoMatch Tellus
    Optional
  • Hydraulic Outlets
    1SA + 1DA
  • Wheels and Axles | 11.5/80-15
    N/A
  • Wheels and Axles | 15.0/55-17
    Standard
  • Wheels and Axles | 19.0/45-17
    Optional
  • Wheels and Axles | 500/45-22.5
    Optional
  • PTO rpm
    540CV
  • PTO Protection
    CamClutch
  • Minimum PTO Horsepower Required HP/KW
    75
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
