LoopMe

DMC8032R

Disc Mower Conditioners

For Competitive Pricing
Refer to Dealer
0 0 60 Offer Badge

Extended Warranty

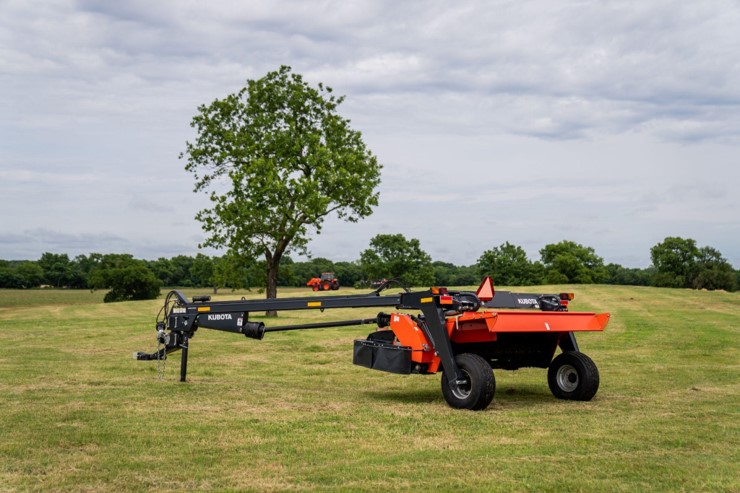

From the 3 bladed disc and fully welded cutterbar to the Chevron roller with protective, spring tensioning system, the Kubota DMC8032R is designed to give your crops effective and gentle handling. The working width of the disc mower conditioner comes in at 10’ 6” but with the transportation kit, you’ll narrow that number down to 9’ 1”. You can even outfit your DMC with a spreading kit to save you a little time and plenty of resources. Read Disclaimer

Features & Details

Gentle Roller Conditioning

Gentle Roller Conditioning (R Models)

Roller conditioning provides gentle yet effective handling of fragile crop such as alfalfa or clover. The 8.8" diameter wide rubber rollers are made from highly durable polyurethane with a steel core. This design ensures straight rollers that will not flex out of shape, regardless of the force transmitted onto them. The spring-controlled pressure exerted between the two rollers guarantees uniform conditioning intensity, regardless of the amount of crop passing through the rollers. Additionally, if an obstacle is encountered, the spring tensioning system will separate the rollers, leaving an opening of up to 2.4" allowing objects to pass without damage to the rollers.

0614_DMC8032_Mowing_4446

Kubota Suspension for Clean Cutting Action

The complete mowing section, including the conditioner, is suspended independently from the main chassis by either two or four long adjustable suspension springs, allowing it to follow the field contour. If an obstacle is encountered in the field, the mowing section will lift up and backwards, protecting the cutterbar from damage. When the obstacle is passed, the mowing section automatically returns to the working position.

0614_DMC8032_Transport_1907

Transport with Integrated Lighting Kit

The DMC8000 series offers a secure and convenient transport solution, which includes an integrated lighting kit for excellent road visibility. The transport width for DMC8028T and DMC8028R is 8'1" and the transport width for DMC8032T and DMC8032R is 9'1".

Wide-spreading_002

Wide Spreading Kit

All models can be fitted with an optional easy-to-use wide spreading kit. This enables crop to be cut and spread in one operation, saving both time and resources. Best of all, changing from swathing to wide spreading is a one-man-job.

Express Quick Change of Knives - DM

Express Quick Change of Knives

Mowers can be fitted with the 'Express' system for quick and easy changing of knives. Simply place the lever around the bolt, release the spring by turning the lever and the knife is ready to be replaced with a new one.

02_fully-welded-cutterbar

Fully Welded Cutterbar

The fully welded Kubota cutterbar with overlapping C-channels makes for a stiff and strong design, ensuring a high level of durability. The cutterbar’s design, with machined gears and large bearings along with low oil requirements, allows for a low working temperature for efficient oil cooling and lubrication of the entire cutterbar.

01_triangular-discs

Counter

Rotating Three-Bladed Discs

With three blades per disc, Kubota mowers are constantly cutting. This means a third less load per blade, an even load on the drive and smoother power usage – which produces an even, cleanly cut stubble. Each steel blade is precisely angled to immediately discharge the cut crop upwards by both air flow and mechanical action.

0614_DMC8536_Adjstmnt_5989

Easy Adjustment

A simple crank adjusts the whole cutterbar assembly up or down to a desired stubble height. Additional skids are available to increase cutting height.

0614_DMC8032_Ditch_9307

Benefits of Kubota Suspension Springs Design

The long spring design allows for excellent ground following ability. In uneven fields, the mower is able to adapt +19.7"/-5.9" The suspension springs are fitted on the widest possible position of the mowing section to ensure even ground pressure. The weight on ground is stable and only approximately 88 -110 pounds on each side. The suspension arms are fitted between the mowing section and mainframe so when an obstacle is encountered, the mowing section moves backwards and upwards to allow the object to pass. The mower will automatically return to its working position once the obstacle is cleared.

Cutting Widths

Cutting Widths

  • DMC8028T – 9’2”
  • DMC8032T – 10’6”
  • DMC8032R – 10’6”

SPECS & COMPARE: Kubota Models

DMC8032R

The best cut available, no matter the terrain.

SEE DEALERSHIP FOR PRICE
  • Drawbar
    Left hand
  • Conditioner
    Chevron Roller
  • Working Width ft. (m)
    10' 6" (3.2)
  • Transport Width ft. (m)
    9' 8" (2.9)
  • Weight lbs. (kg)
    4150 (1882)
  • Cutting Height in.
    1.25-3.25
  • Hitch (CAT)
    Cat II
  • Hitch
    Drawbar, Swivel, Gearbox
  • PTO RPM
    540 standard / 1000 optional
  • Minimum PTO Horsepower Required HP/KW
    60/80
  • Number of Disc and Knives
    8
  • Remotes
    2
  • Cutterbar Operating Angle
    ±15
  • Stubble Height in. (mm)
    1.18"-1.57"
  • Cond. Rotor Speed
    900
  • Tires
    380/55-17
  • Wide Spreading Kit
    Optional
  • High Skids in.
    Optional/Optional/Optional
  • Throwing Wings for Diff. Crops
    Standard
  • Lighting Kit
    Standard
  • Alternative Cond. Speed Kit
    1200
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
