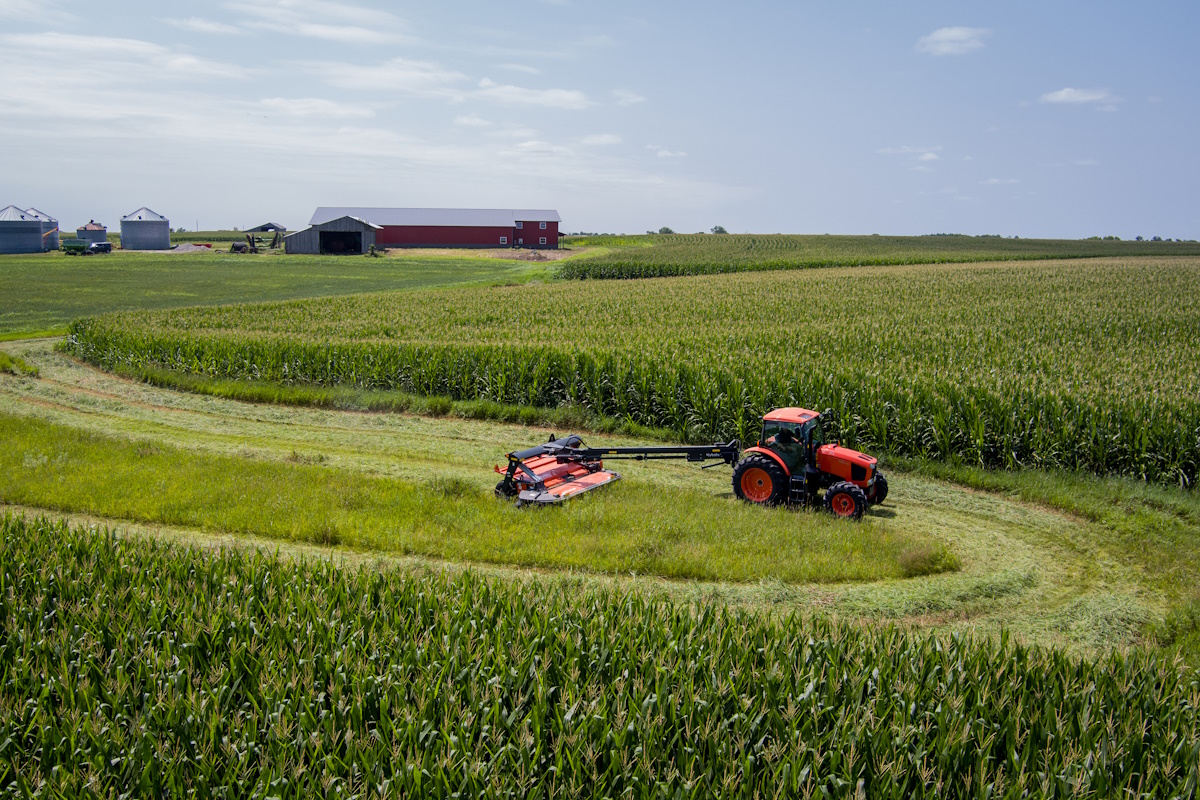

Exceptional conditioning capability meets precision mowing in the Kubota DMC8547R! The Kubota Disc Mower Conditioner adapts to your movements with its ground following ability, letting you cover more ground and make sure you’re taking care of your ground. Independent active suspension keeps things stable, while ten discs and 30 blades provide you with a cutting width of 13’ 1” and a clean cut each time. No matter the terrain, no matter the acreage, the Kubota DMC8547R has got your back! Read Disclaimer

Features & Details

Gentle Roller Conditioning

Gentle Roller Conditioning (R Models)

Roller conditioning provides gentle yet effective handling of fragile crop such as alfalfa or clover. The 8.8" diameter wide rubber rollers are made from highly durable polyurethane with a steel core. This design ensures straight rollers that will not flex out of shape, regardless of the force transmitted onto them. The spring-controlled pressure exerted between the two rollers guarantees uniform conditioning intensity, regardless of the amount of crop passing through the rollers. Additionally, if an obstacle is encountered, the spring tensioning system will separate the rollers, leaving an opening of up to 2.4" allowing objects to pass without damage to the rollers.

0614_DMC8032_Mowing_4446

Kubota Suspension for Clean Cutting Action

The complete mowing section, including the conditioner, is suspended independently from the main chassis by either two or four long adjustable suspension springs, allowing it to follow the field contour. If an obstacle is encountered in the field, the mowing section will lift up and backwards, protecting the cutterbar from damage. When the obstacle is passed, the mowing section automatically returns to the working position.

0614_DMC8032_Transport_1907

Transport with Integrated Lighting Kit

The DMC8000 series offers a secure and convenient transport solution, which includes an integrated lighting kit for excellent road visibility. The transport width for DMC8028T and DMC8028R is 8'1" and the transport width for DMC8032T and DMC8032R is 9'1".

Wide-spreading_002

Wide Spreading Kit

All models can be fitted with an optional easy-to-use wide spreading kit. This enables crop to be cut and spread in one operation, saving both time and resources. Best of all, changing from swathing to wide spreading is a one-man-job.

Express Quick Change of Knives - DM

Express Quick Change of Knives

Mowers can be fitted with the 'Express' system for quick and easy changing of knives. Simply place the lever around the bolt, release the spring by turning the lever and the knife is ready to be replaced with a new one.

02_fully-welded-cutterbar

Fully Welded Cutterbar

The fully welded Kubota cutterbar with overlapping C-channels makes for a stiff and strong design, ensuring a high level of durability. The cutterbar’s design, with machined gears and large bearings along with low oil requirements, allows for a low working temperature for efficient oil cooling and lubrication of the entire cutterbar.

01_triangular-discs

Counter

Rotating Three-Bladed Discs

With three blades per disc, Kubota mowers are constantly cutting. This means a third less load per blade, an even load on the drive and smoother power usage – which produces an even, cleanly cut stubble. Each steel blade is precisely angled to immediately discharge the cut crop upwards by both air flow and mechanical action.

0614_DMC8536_Adjstmnt_5989

Easy Adjustment

A simple crank adjusts the whole cutterbar assembly up or down to a desired stubble height. Additional skids are available to increase cutting height.

0614_DMC8032_Ditch_9307

Benefits of Kubota Suspension Springs Design

The long spring design allows for excellent ground following ability. In uneven fields, the mower is able to adapt +19.7"/-5.9" The suspension springs are fitted on the widest possible position of the mowing section to ensure even ground pressure. The weight on ground is stable and only approximately 88 -110 pounds on each side. The suspension arms are fitted between the mowing section and mainframe so when an obstacle is encountered, the mowing section moves backwards and upwards to allow the object to pass. The mower will automatically return to its working position once the obstacle is cleared.

Cutting Widths

Cutting Widths

  • DMC8028T – 9’2”
  • DMC8032T – 10’6”
  • DMC8032R – 10’6”

SPECS & COMPARE: Kubota Models

DMC8547R

Easy adjustment and increased productivity.

SEE DEALERSHIP FOR PRICE
  • Drawbar
    Center
  • Conditioner
    Roller
  • Working Width ft. (m)
    15’ 5” (4.7)
  • Transport Width ft. (m)
    14’ 9” (4.5)
  • Weight lbs. (kg)
    7585 (3440)
  • Cutting Height in.
    1.25-3.25
  • Hitch (CAT)
    Cat II
  • Hitch
    Drawbar, Swivel, Gearbox
  • PTO RPM
    1000 standard / 540 optional
  • Minimum PTO Horsepower Required HP/KW
    120
  • Number of Disc and Knives
    12/36
  • Remotes
    2
  • Cutterbar Operating Angle
    ±17
  • Stubble Height in. (mm)
    1.18“-2.36“
  • Cond. Rotor Speed
    900/1200
  • Tires
    380/55-17
  • Wide Spreading Kit
    Optional
  • High Skids in.
    Optional/Standard/Optional/Optional
  • Throwing Wings for Diff. Crops
    Standard
  • Lighting Kit
    Standard
  • Alternative Cond. Speed Kit
    -
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
