RA1035

Rakes

For Competitive Pricing
Refer to Dealer
20 0 84 Offer Badge

Extended Warranty

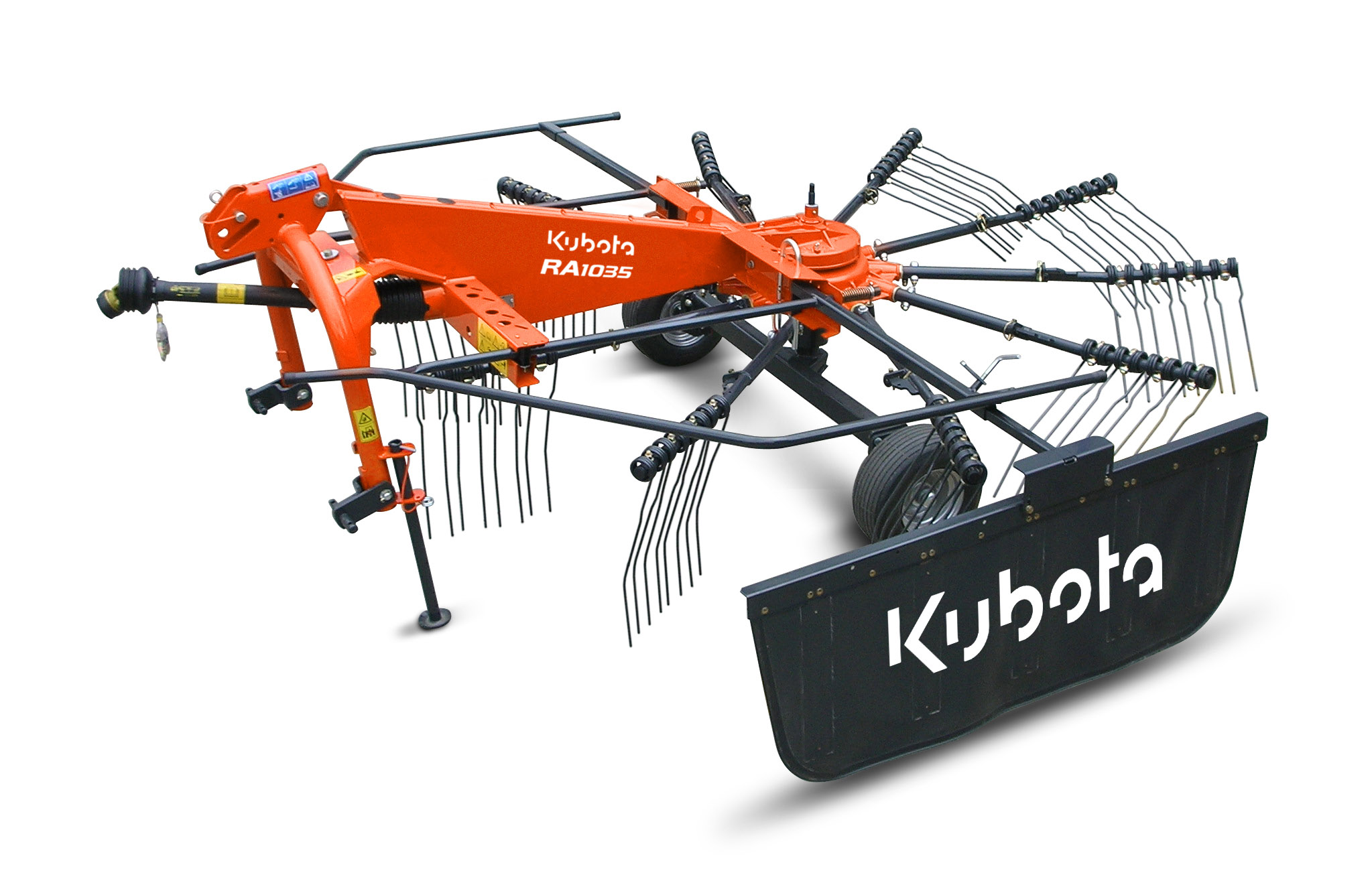

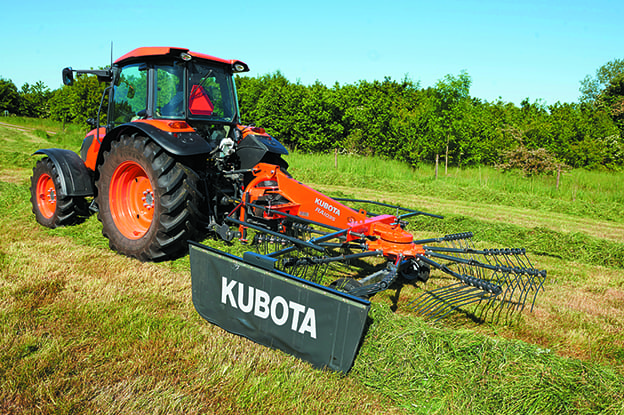

Spend more time working and less time maintaining with the Kubota RA1035 Rake! Built with all types and volumes of crops in mind, the three-point linkage, 9’ 2” rake is easily maneuvered and a 5’ 9” transport width makes moving from field to field or storing easy.

Features & Details

RA1042T_004

Easy Set for Transport

The Kubota RA1035 width can be reduced to 5'9" for transport and storage by placing the tine arms on the carrier frame. The Kubota RA1042T can be easily converted to 6’7” for transport and entering into smaller fields or narrow gates.

04_Exceptional-Raking-Performance

Exceptional Raking Performance

Up to eleven tangential tine arms and four double tines per arm provide high tine frequency to ensure clean raking performance in all types and volumes of crops.

04_Exceptional-Raking-Performance

Outstanding Durability

The Kubota rakes are equipped for maximum raking performance. The FarmLine rakes all feature 9mm wire diameter tines for outstanding durability.

03_High-lift-Tine-Arms

Curved Tine Arms

All Kubota FarmLine rakes feature cranked tine arms for handling high volume crops, giving cleaner raking performance and optimized swath formation. This design ensures that the row of tines on each tine bar has a more effective approach angle to the oncoming crop and also gives a cleaner lift out of the tine from the formed swath.

02_Maintenance-Friendly-Gearbox

Kubota Compact Rotor

The rotor is grease lubricated within a fully enclosed housing. The maintenance-free cam track, cam followers, as well as the bearings of the rotor star axles, are permanently running in an oil bath. Both the rotor and pinion shaft are mounted on two bearings for maximum strength and long service life.

01_low-Horsepower-Tractors

Ideal for Low Horsepower Tractors

The Kubota RA1035 and RA1042T single rotary rakes are designed for low power requirements, while still delivering considerable working width of 9’2” & 11'6" with swath and 10’2” on the RA1042T & 13’9” including swath, respectively. With a pivoting three point linkage machine (RA1035) as well as a trailed version (RA1042T), there is a model to meet any field or crop needs.

FarmLine Rakes

FarmLine Rakes

Kubota's FarmLine rakes feature oil-immersed cam discs, guide rollers and tine bearings, making them low maintenance. All rakes are fitted with curved tine arms, to ensure a regular and even swath formation in all crop conditions. Additionally, the curved shape increases the tine working area as the rake is moving and allows a higher lift out of the swath, which is critical in high volume crops, ensuring a very uniform swath. Our expert knowledge in producing the right swath not only optimizes the capacity of the baler, but also increases the quality of the forage.


SPECS & COMPARE: Kubota Models

RA1035

Higher performance, lower horsepower requirements.

SEE DEALERSHIP FOR PRICE
  • FarmLine
    Standard
  • ProLine
    N/A
  • Working Width ft. (m)
    11' 6"
  • Transport Width ft. (m)
    5' 9"
  • Transport Length ft. (m)
    11'
  • Parking Height ft.
    5' 7"
  • Weight lbs. (kg)
    926 (420)
  • Capacity Theo. (Acres/h)
    9.6
  • Pivoting 3-pt Headstock (cat.)
    1/2
  • Lower Links (2-pt.)
    N/A
  • Linkage Drawbar
    N/A
  • Gauge Wheel 16"
    Optional
  • Rotor Diameter ft.
    9' 2" (2.8)
  • Swath Delivery
    Left
  • Number of Rotors
    1
  • Number of Arms Per Rotor
    10
  • Number of Double Tines/Arm
    4
  • Tine Diameter in.
    .35"
  • Continuous Cam Track
    N/A
  • Detachable Tine Arms
    Standard
  • Height Adjustment
    Mechanical
  • Tires (Rotors)
    16x6.5-8
  • Fixed Tandem Axle
    Optional
  • Pivoting Tandem Axle
    N/A
  • Stand. Tires (Carrying Frame)
    N/A
  • Carrier Arm Compensating
    Optional
  • Locking Catch for Slopes
    Optional
  • Warning Panels
    Optional
  • Road Lights
    Optional
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
