Standard L01 Series

There’s a reason why Kubota has been the top selling compact tractor brand for over a decade.*  Kubota’s quality, and the Standard L01 series reputation is known in all circles, whether it be homeowners, rental yards, or contractors.

*Based on EDA tractor sales data of under 40 horsepower models from 2009 to 2019.

Kubota understands that not every customer’s needs are the same. With that in mind, Kubota offers multiple options for customers throughout the Standard L01 Series lineup.

• 2 or 4 Wheel Drive Front Axles – Since not everyone needs or wants a 4WD tractor, Kubota offers you the choice of either one.
• Gear-Drive or HST Transmission - Having two transmission options allows you to make the choice for what really suits you better, whether it be an economical, comfort, or performance need.
• Four Horsepower Models - Ranging from 24.8 to 47.3 gross horsepower, Kubota’s Standard L01 series offers four affordable horsepower models to choose from based on your application and implement requirements.

Because of our reputation for reliability and performance, Kubota is the #1 manufacturer in the world for under 100 HP non-automotive, multi-cylinder diesel engines.*  The Standard L01 Series is equipped with the Kubota-built diesel engine. Features include:

• Powerful Performance - Kubota diesel engines are known to maximize engine performance.
• The Standard L01 series offers 4 horsepower options, ranging from 24.8 to 47.3 HP, to fit a wide variety of performance needs.
• Tier 4 Final Emission Compliance - The technology behind Kubota diesel engines comply with emission standards. Our L3301, L3901, and L4701 are equipped with a Common-Rail System (CRS) with electronic controlled fuel injection.
• Smooth, Quiet Operation - Kubota Diesel Engines are designed to reduce noise and vibration which provides better comfort when operating.
• Fuel Efficiency - Kubota diesel engines are designed not only to maximize performance, but also efficiency and with a large fuel tank and a clean burning engine, the Standard L01 series provides increased fuel efficiency to keep you operating longer.

Kubota prides itself in designing and manufacturing the Standard L01 Series powertrain so that you can be reassured in the quality of the product. The Standard L01 Series offers two Kubota-built transmission options in all four of the horsepower models.

• 3-Range HST – Kubota Standard L01 Series HST models have a 3-range (Low-Medium-High) transmission, making it easier for any operator to find the right mix of speed and torque for more precise control.
  • HST Treadle Pedal – HST models come with the Kubota Treadle Pedal, which is easy to use with no confusion on which pedal you are pushing, making every job faster and safer.
  • Cruise Control - Allows for a set, constant speed. This feature is standard on the L4701 and optional on the L2501, L3301 and L3901.
• Gear-Drive Transmission - Kubota’s gear-drive transmission is available in both 2WD and 4WD models. The advantage of a gear-drive transmission can be both economical and to maximize power, especially in heavy-duty applications.
  • The L2501 gear-drive transmission has 8 forward and 4 reverse (8x4) speeds, with 2 ranges in forward (low-high).
  • L3301/L3901/L4701 Gear-Drive Transmissions has 8 forward and 8 reverse (8x8) speeds, with 2 ranges in forward (low-high).

• Kubota Designed, Kubota Built – From front to rear, the Kubota Standard L01 series is designed and built by Kubota for you. You won’t find a “Kubota” re-branded tractor built by others, only Kubota quality through and through.
• Heavy Duty Construction – All Standard L01 series are equipped with a heavy duty front axle, cast steel transmission and rear end, as well as steel hood and fenders, making them built to last.

Simplicity and comfort are key, especially during long hours of operation. The Standard L01 series is designed to be easy to use with an ergonomic control layout while also providing the comfort needed. Standard features include:

• Wide, Spacious Semi-flat Operator Platform
• Suspension Seat
• Transmission-driven or Live PTO Engagement (depending on model) -  simple, easy-to-use design
• Easy to Read Dash Panel – Features large gauges showing RPM, engine temperature and fuel level
• Rear Differential Lock
• Position Control - Smoother 3-Point Hitch raising and lowering
• Cup Holder
• Tool Box
• Foldable ROPS – ROPS for maximum protection, foldable for maximum convenience

Simplicity and comfort are key, especially during long hours of operation. The L01 series is designed to be easy to use with an ergonomic control layout while also providing the comfort needed. Standard features include:

• Wide, Spacious Flat Operator Platform
• Suspension Seat
• Electro-Hydraulic Independent PTO Engagement Switch
• Easy to Read Dash Panel – Features large gauges showing RPM, engine temperature and fuel level
• Rear Differential Lock
• Position Control - Smoother 3-Point Hitch raising and lowering
• Cup Holder
• Tool Box
• Foldable ROPS – ROPS for maximum protection, foldable for maximum convenience

Kubota’s front loaders are built by Kubota and specifically designed to maximize the performance of the front loader and tractor. Features include:

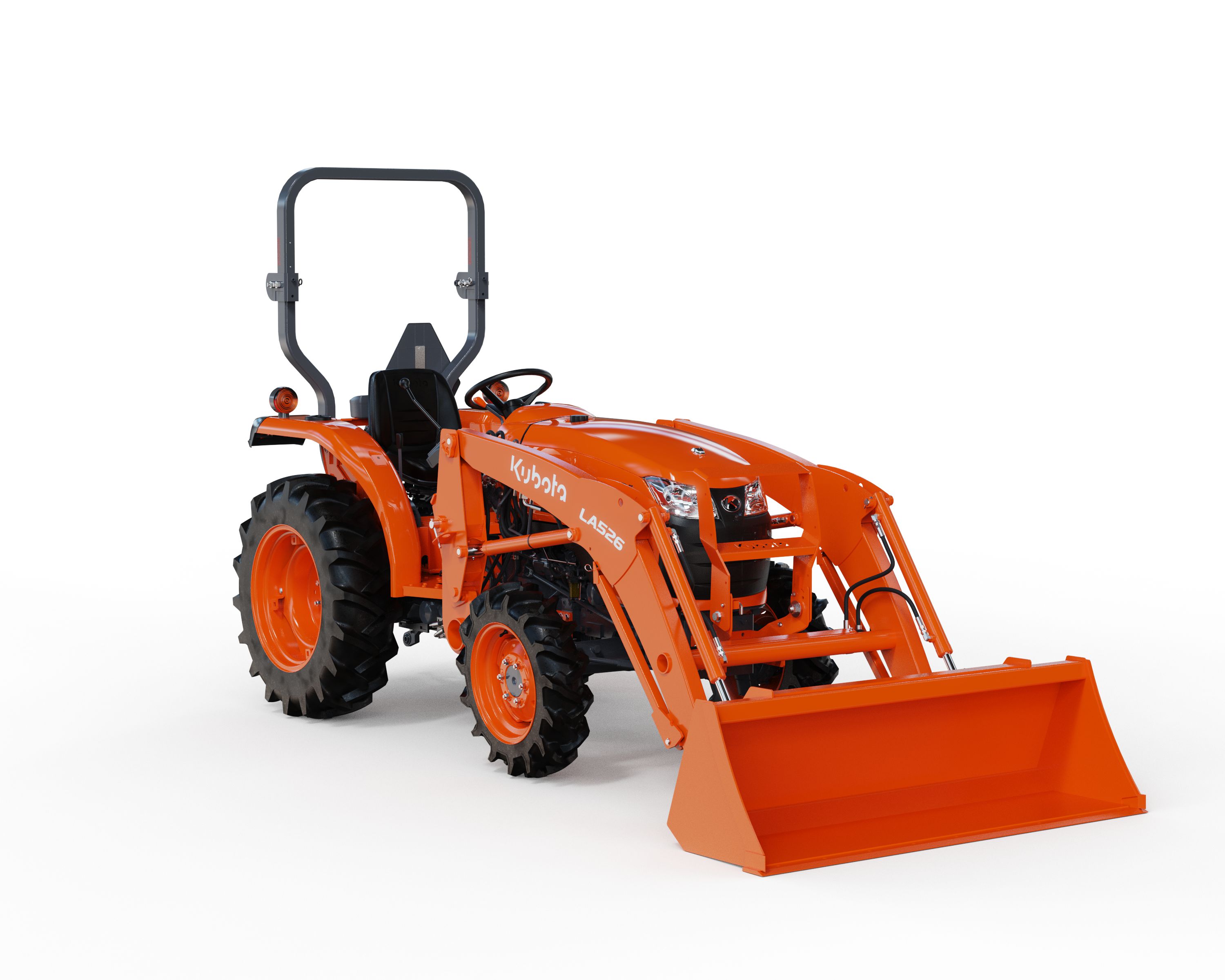

• Kubota-built LA525 front loader: designed for the L2501, L3301 and L3901, this loader has a maximum lift capacity of 1,082 pounds at the pin and a maximum lift height of 94.3 inches at the pin.
• Kubota-built LA765 front loader: designed for the L4701, this loader has a maximum lift capacity of 1,684 pounds at the pin and a maximum lift height of 105.2 inches at the pin.
• 2-Lever Quick Coupler – A 2-Lever Quick coupler allows for quick and easy attachment changing, such as buckets, pallet forks, bale spears or any number of other front loader attachments, thus improving productivity. The LA525 offers two loader packages, one with standard 2-lever quick coupler and one without this feature. The LA765 comes standard with the 2-lever quick coupler feature.
• Top Quality Loader Valve – Both LA525 and LA765 feature a loader valve design with simultaneous boom and bucket operation and a regenerative circuit. These features increase speed and dump times to maximize productivity.
• Easy-to-Remove – Both LA525 and LA765 can quickly and easily be removed from the tractor without tools or need for buying additional “parking” kits, making it more versatile and easier to use.

Performance matched backhoes are built by Kubota and specifically designed to match the performance of the tractor. Backhoes are great for digging applications such as trenching or landscaping.

• Ease of Use – Designed with plenty of dig depth and reach, smooth hydraulics, and a spacious operator platform, you will find the BH77 and BH92 not only easy to use, but a pleasure to work with.
• Standard Cushioning Valve - Equipped standard with cushioning valves on each cylinder to prevent impact shock when the dipper reaches the end of the cylinder stroke.
• Optional Mechanical or Hydraulic Thumb - Adding a thumb increases versatility and makes lifting objects even easier. This feature is available in either the economical mechanical or the efficient hydraulic version (Hydraulic thumb only available on BH92).
• Easy To Remove – The Kubota BH77 and BH92 are easily removed without the use of tools, which will make full use of efficiency.

With a heavy-duty 3-Point Hitch, Kubota’s Standard L01 Series takes on tough applications with a pulling performance you can count on. The Standard L01 Series is equipped with a large capacity hydraulic cylinder and pump which allows for a powerful lifting capacity for a wider variety of implements. Other features include:

• Position Control - All Standard L01 Series models come standard with position control which allows for smooth, precise raising and lowering of the 3-point hitch to reach and lock in a desired minimum height.
• Telescoping Stabilizers - Standard for L4701 and optional for L2501, L3301 and L3901, telescoping stabilizers make attaching and adjusting implements quicker and easier than traditional check chains.

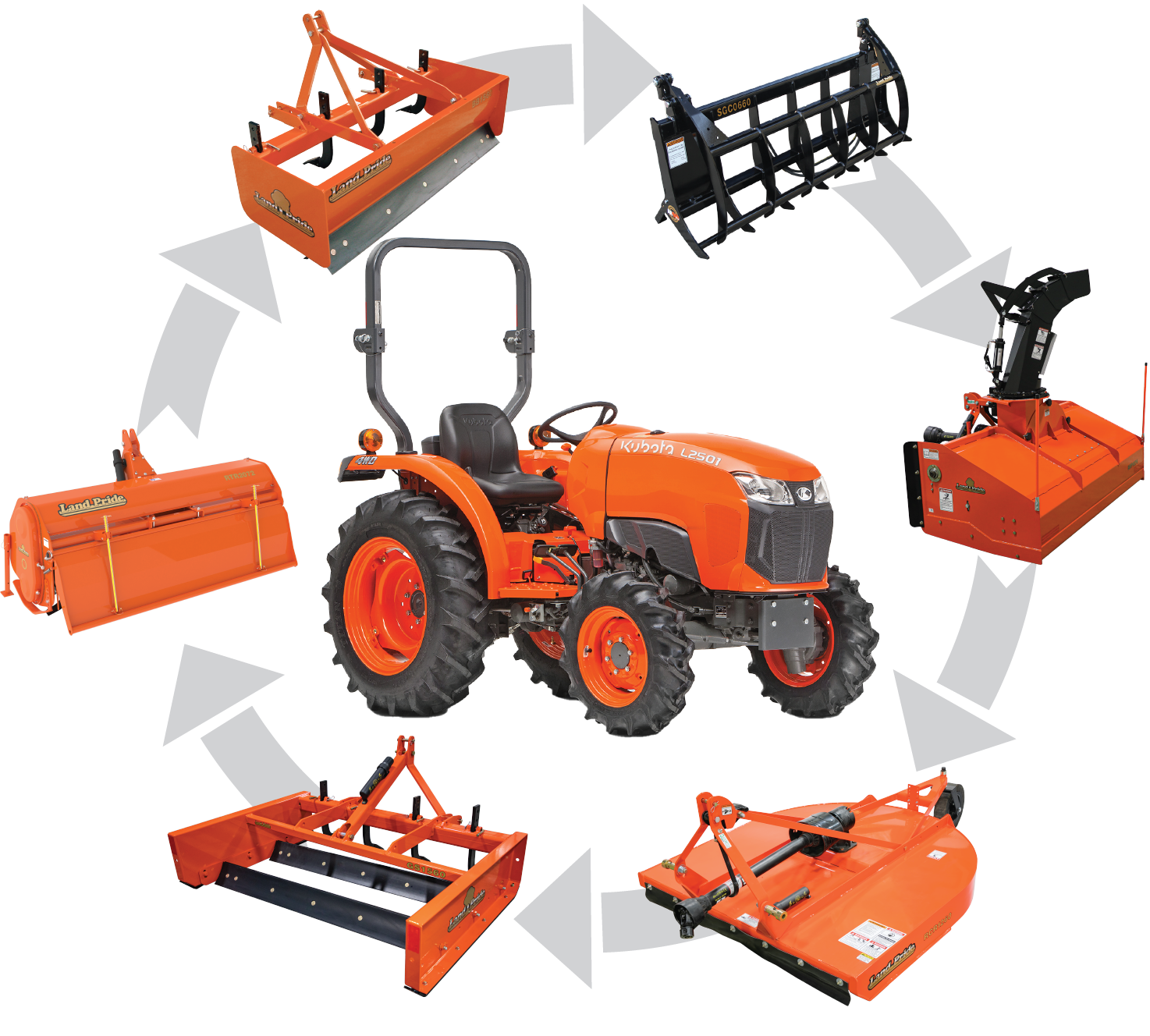

• Land Pride Quick Hitch - Kubota’s Standard L01 Series can be equipped with Land Pride’s quick hitch. This feature greatly improves ease of switching out rear implements and reducing the time it takes to do so. If you plan on having more than one rear 3-point implement, the Quick Hitch is the ultimate time saving, fatigue reducing accessory that you will come to love and appreciate.

*Image shown is L4701 Model

The Value of the Standard L01 Series

Affordability doesn't just refer to the purchase of the tractor upfront, it's meant for the long haul. Kubota is known for its reliability, quality and durability and the Standard L01 series is built to withstand all of the heavy loads and potential wear and tear over the years. The Standard L01 series is designed to minimize maintenance with its durable steel chassis, world renowned Kubota diesel engine, protected hydraulic hoses, and pairing to performance-matched implements.

Along with a durable chassis and easily accessible routinely checked items, the Standard L01 Series’ routine maintenance is simple.

• One-Piece Full Open Metal Hood - Using a gas strut hood opener assist, the one piece hood opens fully with no tools required.
• Access to Commonly Checked Components - Not only does the full open hood give you easy access, but Kubota also strategically designs and places more commonly checked items into accessible spots. Items such as the battery, air filter or radiator screen are positioned at the front for quick, simplified access.
