M Low Profile

Specialty

MSRP As Low As§
$65,959.56
Find A Dealer
Build My Kubota Build My Kubota
Special Offers
#1 rated in durability and owner experience
MODELS: M5L-111, M6L-111

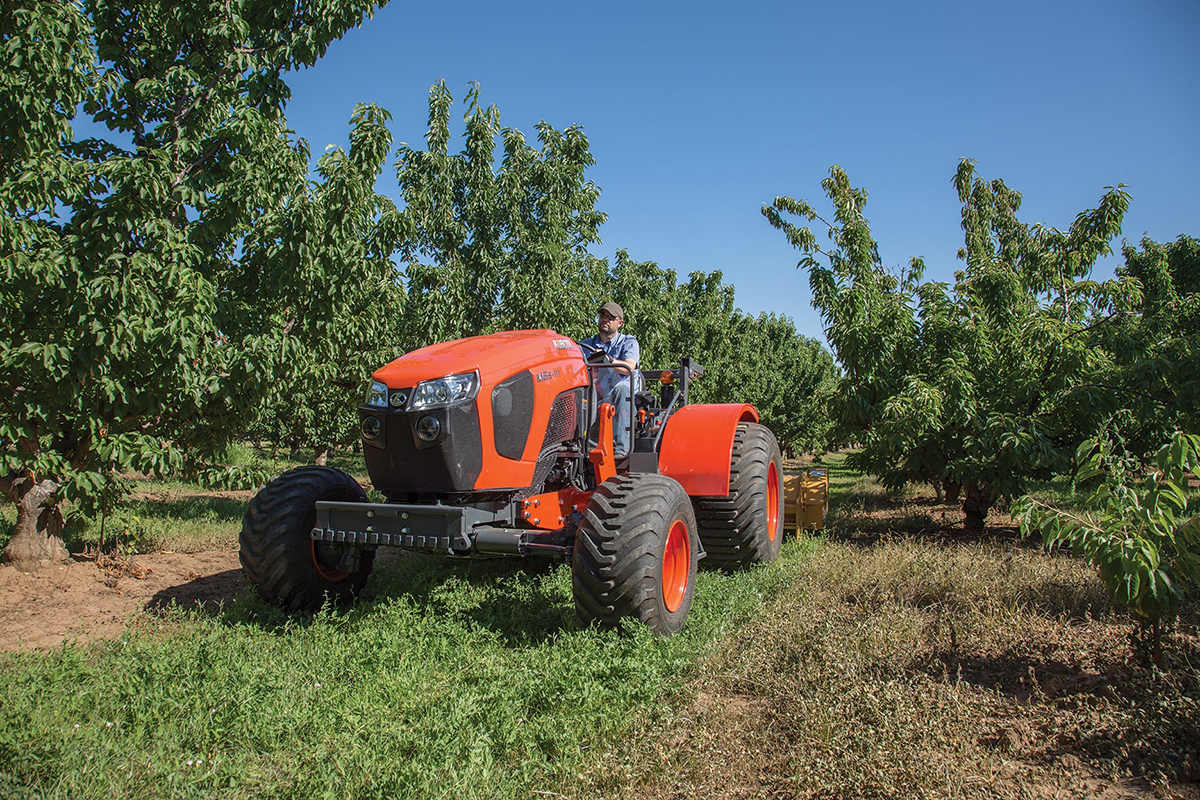

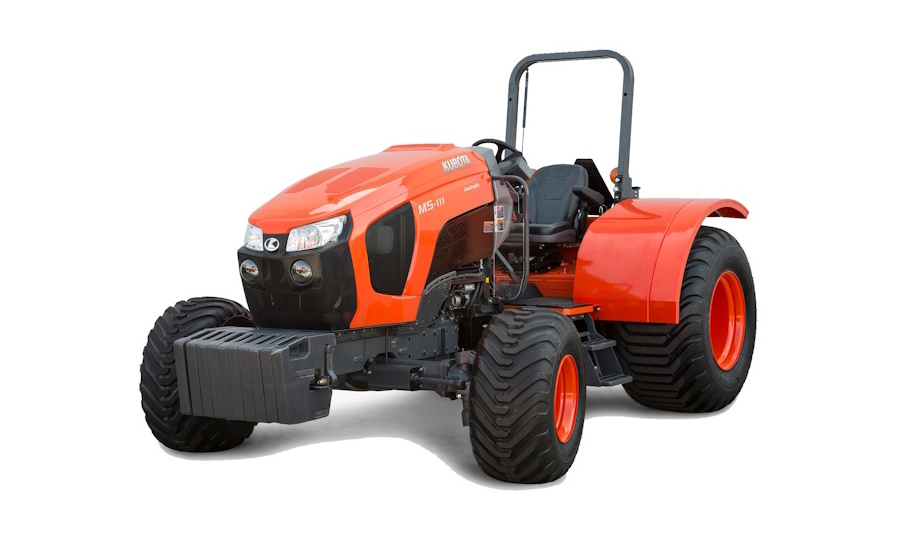

Kubota M Series Low Profile tractors bring you low profile tractors with full-size features and capabilities. Designed specifically for fruit and nut orchard applications, the M Series Low Profile tractors are versatile enough to be used in poultry operations or anywhere low clearance operation is required. M5L and M6L Low Profile tractors are built solid to withstand the toughest orchard conditions and are factory ready to accept a Kubota built front end loader, making Kubota a leader in the low profile specialty tractor market. #1 rated tractor brand for durability and owner experience in the U.S. Read Disclaimer
Download Specs Compare Specs Add-Ons Find a Part Finance Purchase Manual Download Brochure Shop

Features & Details

V-3800-UP4-2

Kubota Diesel Engines

Progressive farmer logo black

#1 rated tractor brand for durability and owner experience in the U.S.

Proven, Powerful and Reliable.
The M Series Low profile tractor line-up is powered by Kubota’s proven and reliable V3800, 3.8 liter, turbocharged, Tier 4 Final diesel engine. With two models to choose from – the M5L-111 or the M6L-111 – customers have a choice to pick the model that fits their operation best.

  • M5L-111 – 100* net engine HP, 89** PTO HP, 5,904 lbs.
  • M6L-111 – 105* net engine HP, 95** PTO HP, 6,856 lbs.

*   SAE J1349 rating @ Rated Engine RPM

** OECD Code 2 rating @ Rated Engine RPM

0516_M5L_111_LoPro_Details_7083

Right Hand Operator’s Guard

Protecting the fruit in an orchard is key, but protecting the operator and controls is as well. Kubota installed a standard right hand operator’s guard on every M Series Low Profile tractor to help keep low hanging branches from contacting the operator or inadvertently contacting critical controls, like the main gear shift levers, throttle, rear remotes or 3-point control.

0516_M5L_111_LoPro_Details_8123

Steel Rear Fenders

While competitors are using lighter plastic and fiberglass rear fenders to protect the trees in the orchard, Kubota continues to use heavy-duty, wide steel fenders that will last the life of the tractor. Kubota’s rear fenders gently deflect the branches of trees, but withstand heavy abuse and keep coming back for more. Kubota steel rear fenders are standard on all M Series Low Profile models.

0617_M6L_111_Transport_5298

Low Profile, Sloped, Steel Hood

In low profile operations, hood height is critical to clear the low hanging canopy of an orchard. Kubota has engineered and designed a hood to not only house the engine and emissions components, but to also gently deflect and avoid branches in an orchard by sloping the hood and keeping it low. The hood heights on the M Series Low Profile tractors are 66.3” on the M5L-111 and 66.8” on the M6L-111. The sloped steel hood on the M Series Low Profile tractors also increases the operator’s visibility in front of the tractor.

SPECS & COMPARE: Kubota Models

M Low Profile

100.0 HP.  Low on Profile but High on Performance.

MSRP AS LOW AS§ $65,959.56
  • Gross Engine HP
    104.4-114.1
  • PTO HP
    84-95
  • Standard Transmission
    Standard: 12F/12R / 24F/24R / 32F/32R
  • Creep Option
    Yes
  • Loader Lift Capacity
    Power: 3990-4299 (1810-1950 kg), Height: 4144-4178 (1880-1895 kg)
  • PTO
    Standard: 540/540E rpm, Option: 540/1000 rpm
  • Hydraulic Flow
    15.7-21.3
  • Three Point Linkage Type
    Category II
  • Three Point Linkage Capacity
    Standard: 3858-4630, Optional: 4795-6063
  • Operator Platform
    ROPS
  • Driveline Type
    4WD
  • Build
+
ADD TO COMPARE
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.
