M5 Series

Utility

MSRP As Low As§
$44,707
0 0 60, 2000 day no pay Offer Badge

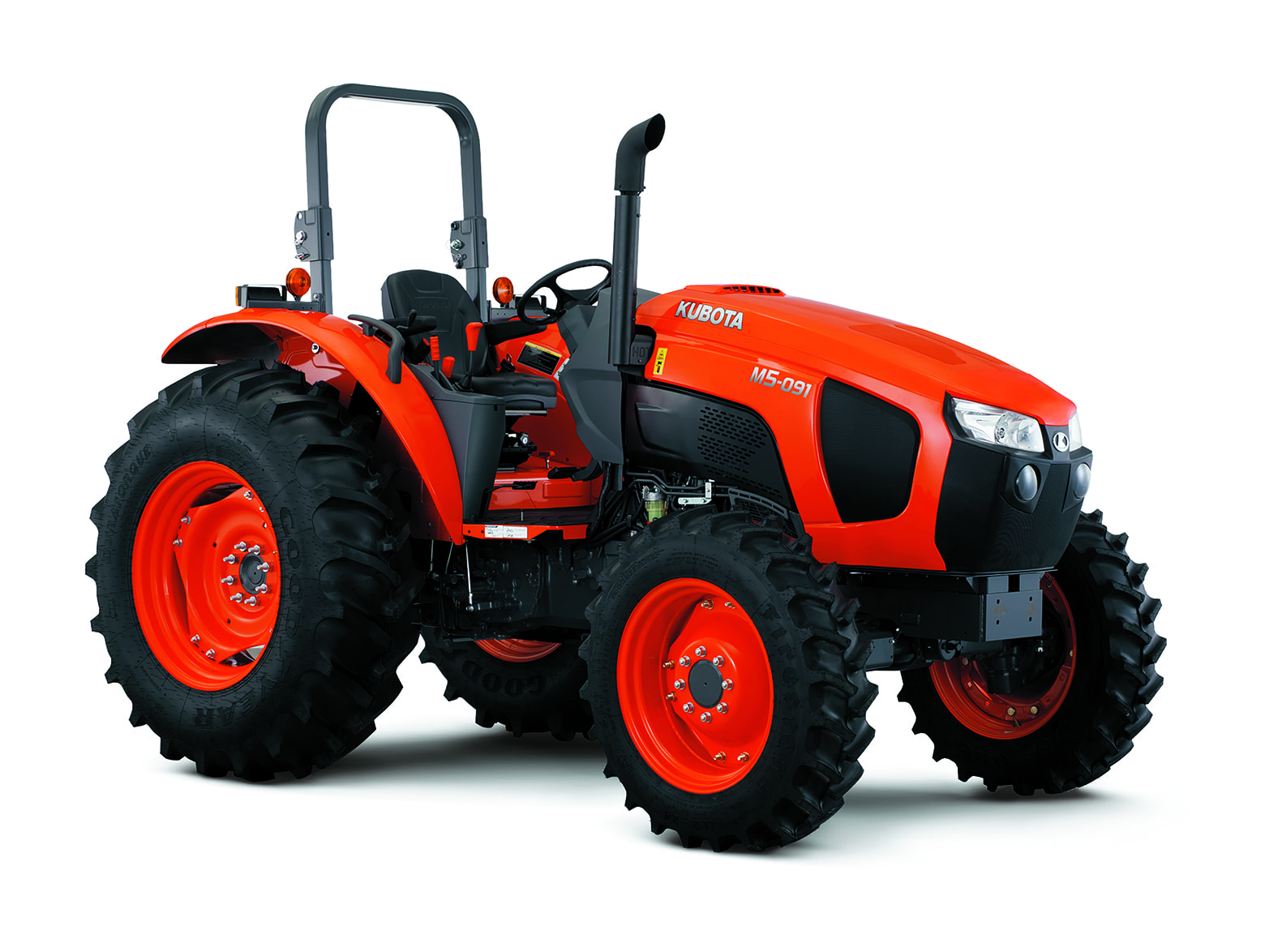

MODELS: M5-091, M5-111
The M5 Series tractors are designed inside and out with features to provide the small hay/cattle producer and part-time farmer with productivity and comfort. These include an extra wide cab, three transmission options and many other deluxe features you would expect to find on more premium tractors. Read Disclaimer

Features & Details

_MG_7743

Great Maneuverability

The M5 Series also has the time tested Kubota bevel gear front axle, which allows for low maintenance, exceptional turning radius and better ground clearance when compared to traditional u-joint front axles. The bevel-gear front axle provides the M5 Series with greater all-around maneuverability, whether you’re in the tight confines of a barnyard or straddling tall windrows in a hay field. The limited slip differential on the front and differential lock on the rear are standard features, offering increased stability and traction on the challenging ground conditions.

0818_M4_071_Seat_0782

Ultra Grand Cab II

Kubota has raised the bar with regard to space and comfort on the M5 Series tractors. With a full flat floor, tilt steering and ergonomic controls, the M5 tractors make your hard day at work easy. The Ultra Grand Cab II has a built in sunroof with a retractable sun shade, giving you an excellent view of the loader when stacking bales. With the large degree of tilt steering adjustability and optional air ride seat, you’ll think your living room just got a new view.

_MG_1028

Transmission Options

  • F8/R8 Transmissions – Four speed synchronized main shift and a high/low range supply tractors with 8 Forward and 8 Reverse speeds
  • F12/R12 Transmissions (Factory Option) – Six speed synchronized main shift and a high/low range, giving it a total of 12 Forwards and 12 Reverse speed to help find the right speed for different applications
  • F24/R24 Transmission Non-Clutch Shift with Dual Speed (Factory Option) – Six speed synchronized main shift and Dual Speed  offers instant upshifts and downshifts with the touch of a button and a high/low range. It offers 24 Forward and 24 Reverse speeds. This transmission will always have the right speed for any application.
  • Overdrive (F12/R12 and F24/R24 models only) – The Overdrive function keeps the engine revolutions at around 2000 rpm during high speed driving for better fuel economy
  • Optional Creep – The dealer installed creep speed kit adds to the versatility by offering 4,6 or 12 more gears to the transmission offering based on the 8,12 or 24 speed transmissions

SPECS & COMPARE: Kubota Models

M5 Series

92.5 - 105.6 HP. The standard of productivity and comfort.

MSRP AS LOW AS§ $44,707
  • Gross Engine HP
    92.5-105.6
  • PTO HP
    76-89
  • Standard Transmission
    Standard: 8F/8R, Option: 12F/12R, 24F/24R
  • Creep Option
    Yes
  • Loader Lift Capacity
    Power: 3990 (1810 kg), Height: 4144 (1880 kg)
  • PTO
    Standard: 540 rpm, Option: 540/540E rpm
  • Hydraulic Flow
    21.3/15.7; 23.1/17.0 / 1st set is HD, 2nd is HDC
  • Three Point Linkage Type
    Category II
  • Three Point Linkage Capacity
    Standard: 4630, Option: 6063
  • Operator Platform
    ROPS / CAB
  • Driveline Type
    2WD / 4WD
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.

Implements


800 Series Compact Drills

800 Series Compact Drills

Land Pride's 800 Series End-Wheel Min-Till Drill uses the field-proven 00 Series opener to properly and accurately place seeds. This rugged opener utilizes 13.5" diameter and 4mm thick disk blades, full-length seed tube and an 18-position T-handle press wheel to precisely control seed depth. Due to its central location, adjusting the down pressure on the 5-position opener is quick and easy. Other features include a lock-out hub to free wheel the drive system during transport, "V" bottom dividers for easy clean out, and folding tongue as standard equipment.
