RA1047T

Rakes

For Competitive Pricing
Refer to Dealer

Extended Warranty

Thanks to a low center of gravity and high performance tine arms, the Kubota RA1047T amplifies your efficiency! This Kubota rake features exceptional maneuverability, letting you make tight turns on headlands and maximize your swathing, even in awkwardly-shaped fields. Easily set your rotor height, transport your rake and increase your precision in the field with the Kubota RA1047T!

Read Disclaimer

Features & Details

Easy Set for Transport

The Kubota RA1035 width can be reduced to 5'9" for transport and storage by placing the tine arms on the carrier frame. The Kubota RA1042T can be easily converted to 6’7” for transport and entering into smaller fields or narrow gates.

Exceptional Raking Performance

Up to eleven tangential tine arms and four double tines per arm provide high tine frequency to ensure clean raking performance in all types and volumes of crops.

Outstanding Durability

The Kubota rakes are equipped for maximum raking performance. The FarmLine rakes all feature 9mm wire diameter tines for outstanding durability.

Curved Tine Arms

All Kubota FarmLine rakes feature cranked tine arms for handling high volume crops, giving cleaner raking performance and optimized swath formation. This design ensures that the row of tines on each tine bar has a more effective approach angle to the oncoming crop and also gives a cleaner lift out of the tine from the formed swath.

Removable Tine Arms

All Kubota FarmLine rakes feature cranked tine arms for handling high volume crops, giving cleaner raking performance and optimized swath formation. This design ensures that the row of tines on each tine bar has a more effective approach angle to the oncoming crop and also gives a cleaner lift out of the tine from the formed swath.

To limit transport height further, the tine arms can be removed. The swath board folds up automatically. All tine arms including housing can be removed individually by just removing 3 bolts.

Kubota Compact Rotor

The rotor is grease lubricated within a fully enclosed housing. The maintenance-free cam track, cam followers, as well as the bearings of the rotor star axles, are permanently running in an oil bath. Both the rotor and pinion shaft are mounted on two bearings for maximum strength and long service life.

Ideal for Low Horsepower Tractors

The Kubota RA1035 and RA1042T single rotary rakes are designed for low power requirements, while still delivering considerable working width of 9’2” & 11'6" with swath and 10’2” on the RA1042T & 13’9” including swath, respectively. With a pivoting three point linkage machine (RA1035) as well as a trailed version (RA1042T), there is a model to meet any field or crop needs.

FarmLine Rakes

Kubota's FarmLine rakes feature oil-immersed cam discs, guide rollers and tine bearings, making them low maintenance. All rakes are fitted with curved tine arms, to ensure a regular and even swath formation in all crop conditions. Additionally, the curved shape increases the tine working area as the rake is moving and allows a higher lift out of the swath, which is critical in high volume crops, ensuring a very uniform swath. Our expert knowledge in producing the right swath not only optimizes the capacity of the baler, but also increases the quality of the forage.

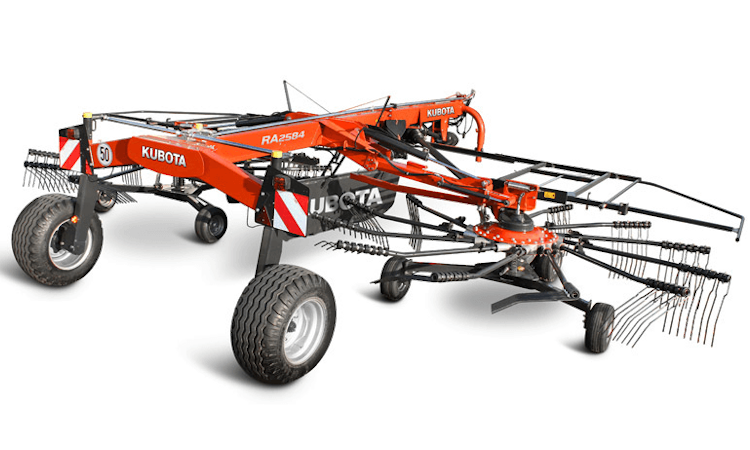

Trailed Suspension

The trailed RA series is designed to work in a variety of crop conditions. The twin rotors work independently from each other, making it possible to collect either one large swath or two smaller swaths. Alternatively, the rake can place two large swaths into one, allowing for a total of up to 41’ crop to be gathered into one swath.

Tandem Wheels

Trailed RA series machines come standard with tandem axles.


SPECS & COMPARE: Kubota Models

RA1047T

Compact design and outstanding maneuverability for heightened performance.

SEE DEALERSHIP FOR PRICE
  • FarmLine
    Standard
  • ProLine
    N/A
  • Working Width ft. (m)
    13' 9"
  • Transport Width ft. (m)
    6' 7"
  • Transport Length ft. (m)
    13' 2"
  • Parking Height ft.
    7' 7"
  • Weight lbs. (kg)
    1257 (570)
  • Capacity Theo. (Acres/h)
    11.4
  • Pivoting 3-pt Headstock (cat.)
    N/A
  • Lower Links (2-pt.)
    N/A
  • Linkage Drawbar
    Standard
  • Gauge Wheel 16"
    Optional
  • Rotor Diameter ft.
    11' (3.4)
  • Swath Delivery
    Left
  • Number of Rotors
    1
  • Number of Arms Per Rotor
    11
  • Number of Double Tines/Arm
    4
  • Tine Diameter in.
    .35"
  • Continuous Cam Track
    N/A
  • Detachable Tine Arms
    Standard
  • Height Adjustment
    Mechanical
  • Tires (Rotors)
    18.5x8.5-8
  • Fixed Tandem Axle
    Standard
  • Pivoting Tandem Axle
    N/A
  • Stand. Tires (Carrying Frame)
    N/A
  • Carrier Arm Compensating
    N/A
  • Locking Catch for Slopes
    N/A
  • Warning Panels
    Optional
  • Road Lights
    Optional
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
